8mm PU Retractable Air Hose Reel (10m to 15m)
  • Description
  • Data Sheet
  • Delivery

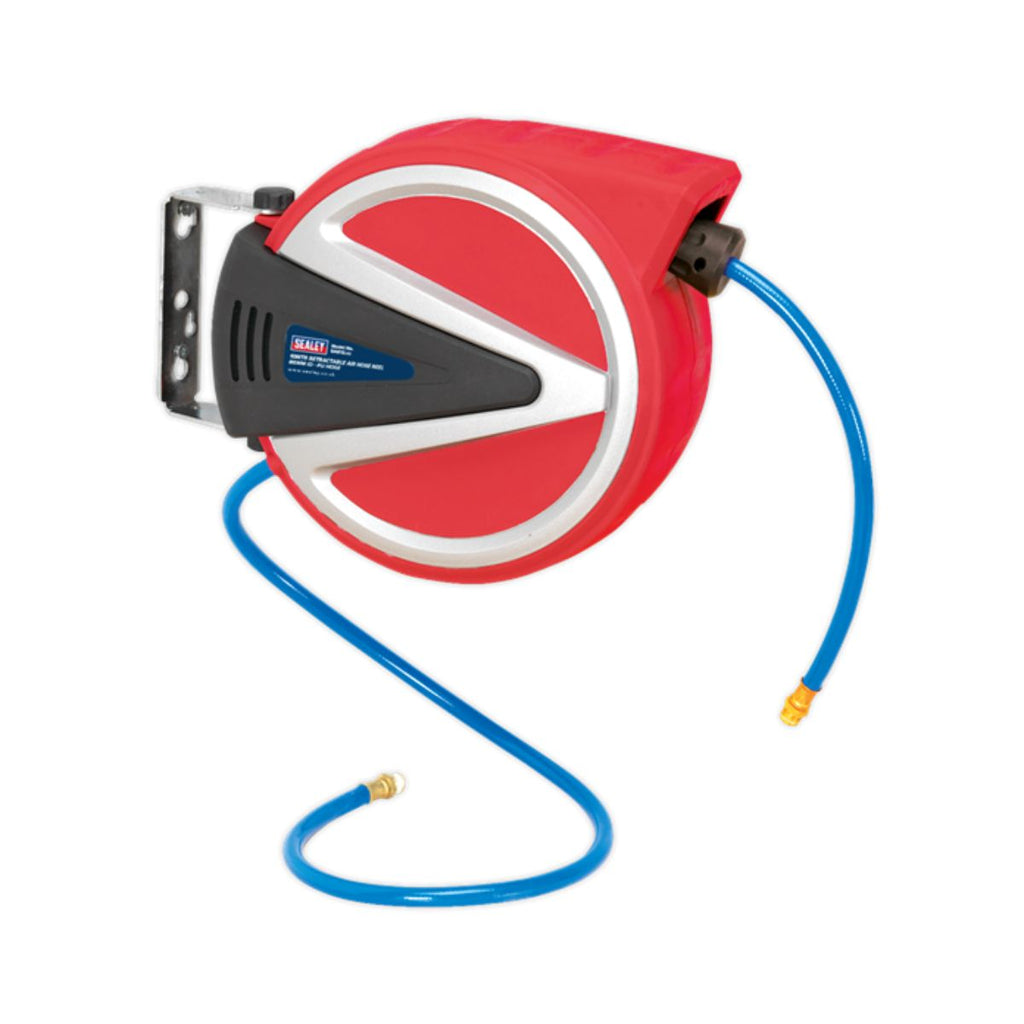

8mm PU Retractable Air Hose Reel (10m to 15m)

This 8mm PU Retractable Air Hose Reel features a double braided polyurethane hose, a robust heavy-duty polypropylene casing and an auto layering mechanism, which will feed the air hose evenly back into the reel housing without jamming. It is ideal for use with compressors in factories, garages and workshops.

  • Robust heavy-duty polypropylene casing
  • Double braided polyurethane hose fitted with ¼”BSP female inlets ¼”BSPT male outlets
  • Comes complete with mounting bracket and fixing kit
  • Auto layering mechanism distributes air hose evenly back into reel housing
  • Choose between 10m length and 15m length
  • 1 year guarantee

The mounting bracket and fixing kit which comes with this product will allow you to attach it to the wall or ceiling. Along with the auto layering mechanism, this ensures that the risk of trips and falls will be reduced and that you can maintain a safe working environment.

Specifications

10m Air Hose

  • Hose size (ID/OD): 8/12mm
  • Hose type: Double braided PU
  • Inlet size: ¼”BSP
  • Outlet size: ¼”BSP
  • Maximum pressure: 150psi
  • Hose length: 10m
  • Weight: 3.22kg

15m Air Hose

  • Hose size (ID/OD): 8/12mm
  • Hose type: Double braided PU
  • Inlet size: ¼”BSP
  • Outlet size: ¼”BSP
  • Maximum pressure: 150psi
  • Hose length: 15m
  • Weight: 4.15kg

Data Sheet:

8mm PU Retractable Air Hose Reel (10m to 15m)

This 8mm PU Retractable Air Hose Reel features a double braided polyurethane hose, a robust heavy-duty polypropylene casing and an auto layering mechanism, which will feed the air hose evenly back into the reel housing without jamming. It is ideal for use with compressors in factories, garages and workshops.

  • Robust heavy-duty polypropylene casing
  • Double braided polyurethane hose fitted with ¼”BSP female inlets ¼”BSPT male outlets
  • Comes complete with mounting bracket and fixing kit
  • Auto layering mechanism distributes air hose evenly back into reel housing
  • Choose between 10m length and 15m length
  • 1 year guarantee

The mounting bracket and fixing kit which comes with this product will allow you to attach it to the wall or ceiling. Along with the auto layering mechanism, this ensures that the risk of trips and falls will be reduced and that you can maintain a safe working environment.

Specifications

10m Air Hose

  • Hose size (ID/OD): 8/12mm
  • Hose type: Double braided PU
  • Inlet size: ¼”BSP
  • Outlet size: ¼”BSP
  • Maximum pressure: 150psi
  • Hose length: 10m
  • Weight: 3.22kg

15m Air Hose

  • Hose size (ID/OD): 8/12mm
  • Hose type: Double braided PU
  • Inlet size: ¼”BSP
  • Outlet size: ¼”BSP
  • Maximum pressure: 150psi
  • Hose length: 15m
  • Weight: 4.15kg
