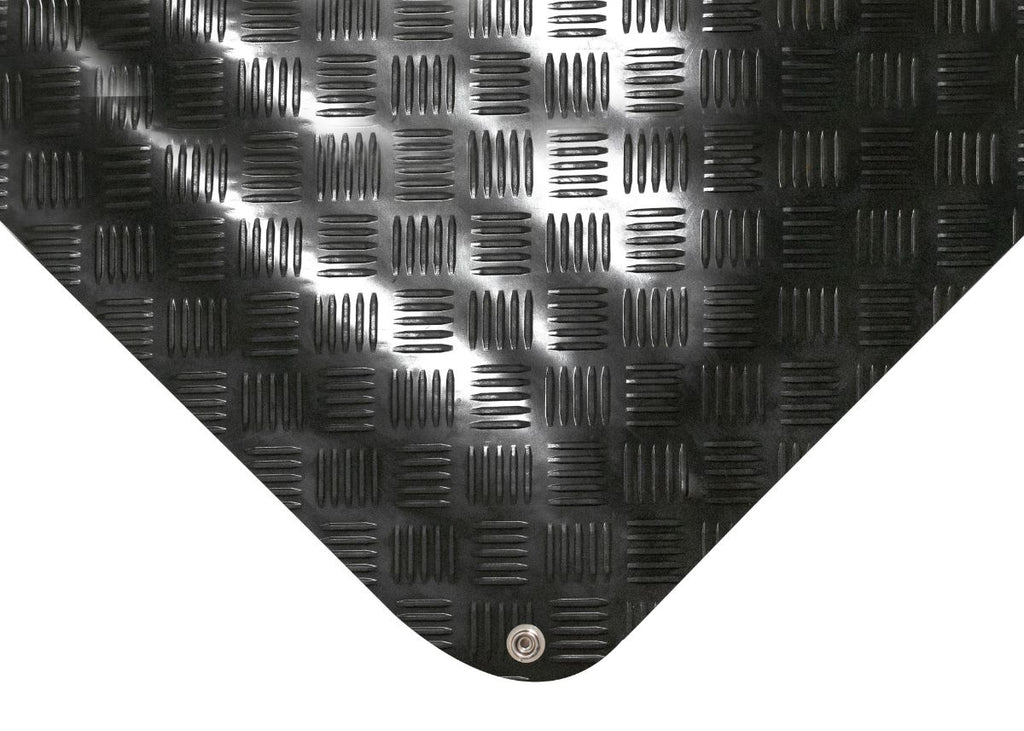

The Ground Mat is an EPA (Electrostatic Protection Area) approved anti static floor mat that greatly improves the safety of your workplace.

Available in 1 standard sizes but also has a Cut To Size option which is 100 cm wide by however long you require ! Simply choose the Custom Length option in the drop down list and enter ( in cm's ) the length you need. We will then calculate a price for you to order.

The Ground Mat contains good oil and grease resistance.

Has an NBR (Nitrile) / SBR Rubber top surface. This means NBR provides good resistance to oils and SBR is a more general purpose rubber, together they create a multipurpose resistant rubber mat.

The Ground Mat increases safety with its rounded edges and its deckplate pattern finish that creates a great anti slip & anti trip surface.

The Ground Mat also has anti-fatigue traits through the use of the EPDM foam base, which creates/ establishes comfort for employees.

The Ground Mat is:

10mm high

Highly durable and oil resistant

Rp-p and Rg < 1 x 109 ohms tested per IEC 61340-4-1

Measured according to IEC61340-4-5





Surface Material

NBR-SBR, black – high-grade good oil resistant

good benzine resistant (also suitable for unleaded fuel): 70 h, 23 °C, Fuel B (ISO 1817), 20 % volume swell for minor mechanical demands



Hardness [Shore A]:                                  65 ±5

Density [g/cm3]: approx.                           1.45

Tensile strength [N/mm2]:                        7

Elongation at break [%]:                           250

Ozone resistance:                                      non resistant

Weather resistance:                                  non resistant

Oil resistance:                                            good resistant

Benzine resistance:                                   good resistant

Acid resistance:                                         moderately resistant

Strong bases:                                             moderately resistant

Abrasion resistance:                                 non resistant





WORKING TEMPERATURE RANGE                                                                        COMPRESSION SET DIN ISO 815

Medium

dyn. (stat.)

max.

short-term



Duration

Temperature

CS

Air

(-10) °C

+70 °C

+90 °C



22 h

+70 °C

+40 %

Data Sheet:

The Ground Mat is an EPA (Electrostatic Protection Area) approved anti static floor mat that greatly improves the safety of your workplace.

Available in 1 standard sizes but also has a Cut To Size option which is 100 cm wide by however long you require ! Simply choose the Custom Length option in the drop down list and enter ( in cm's ) the length you need. We will then calculate a price for you to order.

The Ground Mat contains good oil and grease resistance.

Has an NBR (Nitrile) / SBR Rubber top surface. This means NBR provides good resistance to oils and SBR is a more general purpose rubber, together they create a multipurpose resistant rubber mat.

The Ground Mat increases safety with its rounded edges and its deckplate pattern finish that creates a great anti slip & anti trip surface.

The Ground Mat also has anti-fatigue traits through the use of the EPDM foam base, which creates/ establishes comfort for employees.

The Ground Mat is:

10mm high

Highly durable and oil resistant

Rp-p and Rg < 1 x 109 ohms tested per IEC 61340-4-1

Measured according to IEC61340-4-5





Surface Material

NBR-SBR, black – high-grade good oil resistant

good benzine resistant (also suitable for unleaded fuel): 70 h, 23 °C, Fuel B (ISO 1817), 20 % volume swell for minor mechanical demands



Hardness [Shore A]:                                  65 ±5

Density [g/cm3]: approx.                           1.45

Tensile strength [N/mm2]:                        7

Elongation at break [%]:                           250

Ozone resistance:                                      non resistant

Weather resistance:                                  non resistant

Oil resistance:                                            good resistant

Benzine resistance:                                   good resistant

Acid resistance:                                         moderately resistant

Strong bases:                                             moderately resistant

Abrasion resistance:                                 non resistant





WORKING TEMPERATURE RANGE                                                                        COMPRESSION SET DIN ISO 815

Medium

dyn. (stat.)

max.

short-term



Duration

Temperature

CS

Air

(-10) °C

+70 °C

+90 °C



22 h

+70 °C

+40 %
