Steel Lever Hoists (750kg to 3000kg)

Data Sheet:

Steel Lever Hoists (750kg to 3000kg)

These Steel Lever Hoists feature a strong construction, including drop-forged and heat treated pinion gears with totally enclosed mechanisms. They are easy and safe to use, with heavy-duty brakes and high quality alloy steel chain.

• Strong and robust construction
• Drop-forged and heat treated pinion gear with enclosed mechanism
• Heavy-duty brake and high quality alloy steel chain
• Capacity: 750kg, 1000kg, 1500kg or 3000kg
• 1 year guarantee

The Steel Lever Hoists also have a free-chaining feature which allows slack in the load chain to be taken up by hand before engaging the ratchet arm. Choose between four different capacities, from 750kg to 3000kg, to best suit your requirements.

Specifications

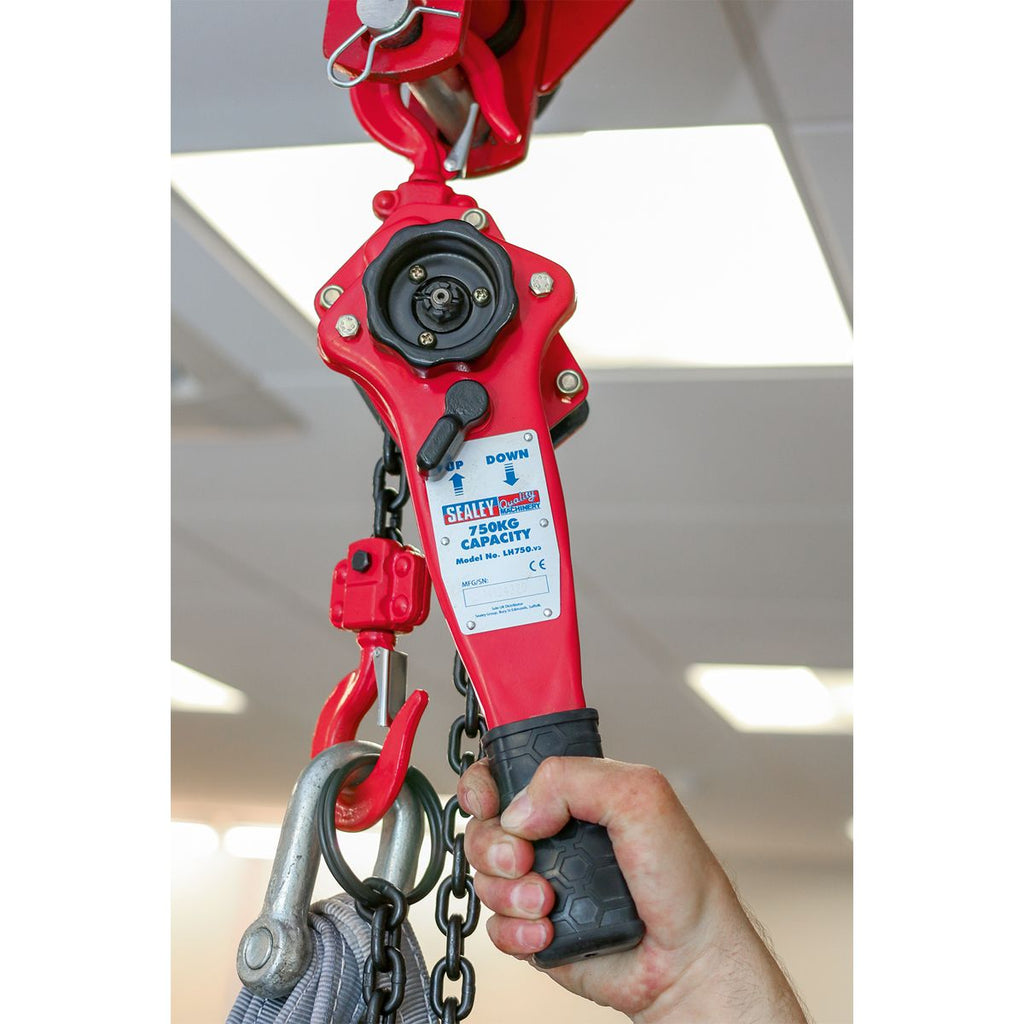

750kg Capacity Steel Lever Hoist

• Capacity: 750kg
• Chain falls: 1
• Chain length: 1.5m
• Head room: 275mm
• Operating clearance: 99mm
• Lever length: 280mm
• Load chain diameter: 6mm
• Hook aperture: 25mm
• Maximum hook capacity: 37mm
• Pull on lever to lift full load: 14kgf
• Net weight: 7kg
• Size: W x D: 136 x 148mm

1000kg Capacity Steel Lever Hoist

• Capacity: 1000kg
• Chain falls: 1
• Chain length: 1.5m
• Head room: 295mm
• Operating clearance: 104mm
• Lever length: 410mm
• Load chain diameter: 8mm
• Hook aperture: 30mm
• Maximum hook capacity: 45mm
• Pull on lever to lift full load: 24kgf
• Net weight: 12kg
• Size: W x D: 160 x 172mm

1500kg Capacity Steel Lever Hoist

• Capacity: 1500kg
• Chain falls: 1
• Chain length: 1.5m
• Head room: 295mm
• Operating clearance: 104mm
• Lever length: 410mm
• Load chain diameter: 8mm
• Hook aperture: 30mm
• Maximum hook capacity: 45mm
• Pull on lever to lift full load: 24kgf
• Net weight: 12kg
• Size: W x D: 160 x 172mm

3000kg Capacity Steel Lever Hoist

• Capacity: 3000kg
• Chain falls: 1
• Chain length: 1.5m
• Head room: 400mm
• Operating clearance: 108mm
• Lever length: 410mm
• Load chain diameter: 10mm
• Hook aperture: 40mm
• Maximum hook capacity: 50mm
• Pull on lever to lift full load: 33kgf
• Net weight: 19.02kg
• Size: W x D: 180 x 200mm
