Data Sheet:

Industrial Orbital Drum Fans (20" to 30")

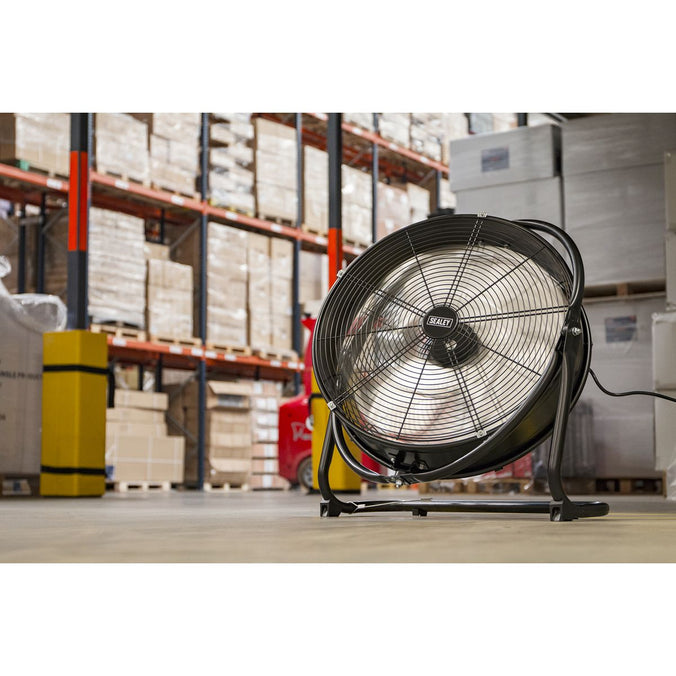

These Industrial Orbital Drum Fans are designed to move huge volumes of air exactly where it's needed, making them ideal for circulating air and cooling industrial, commercial and agricultural premises, as well as automotive workshops and showrooms.

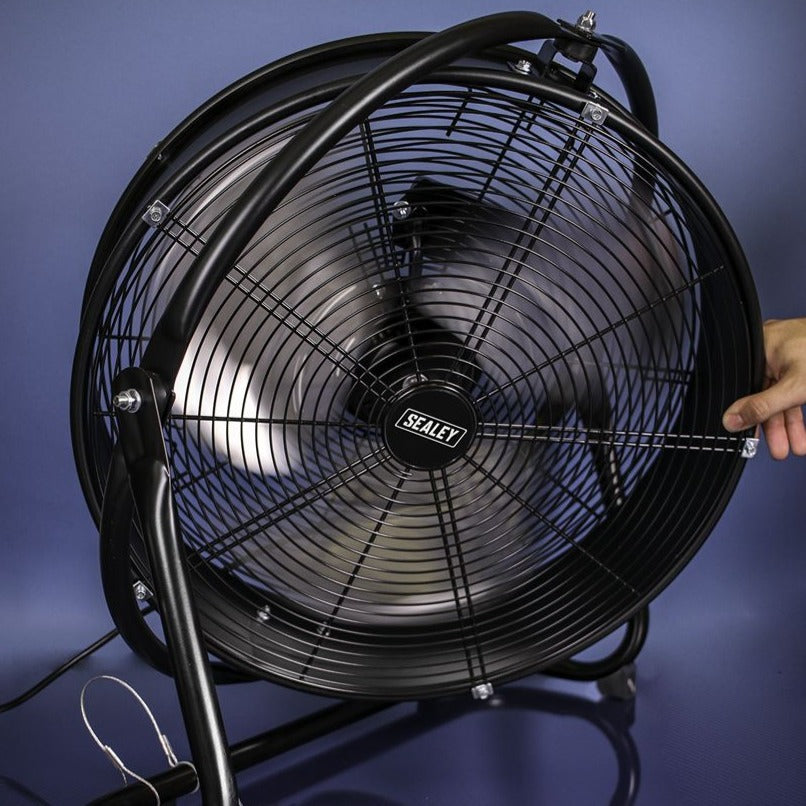

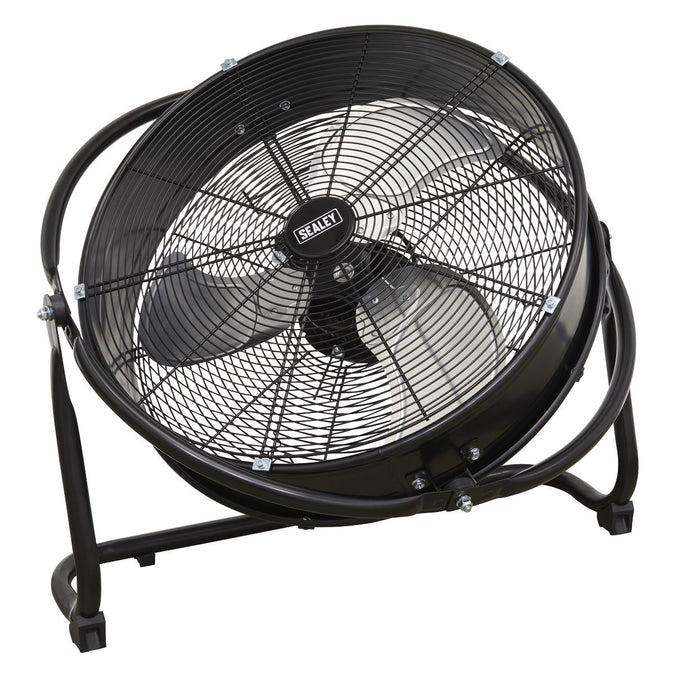

The fans have a 360° tilt function, which allows the cooling airflow to be directed to anywhere on a 360° axis.

• Heavy-duty gauge steel casing, safety guard and frame
• Blades are fully guarded and balanced, for a quiet and safe operation
• Fitted with a 3-pin plug
• Available in three sizes: medium and large sizes have two wheels to make them easily portable
• Comes with a one-year guarantee

Specifications

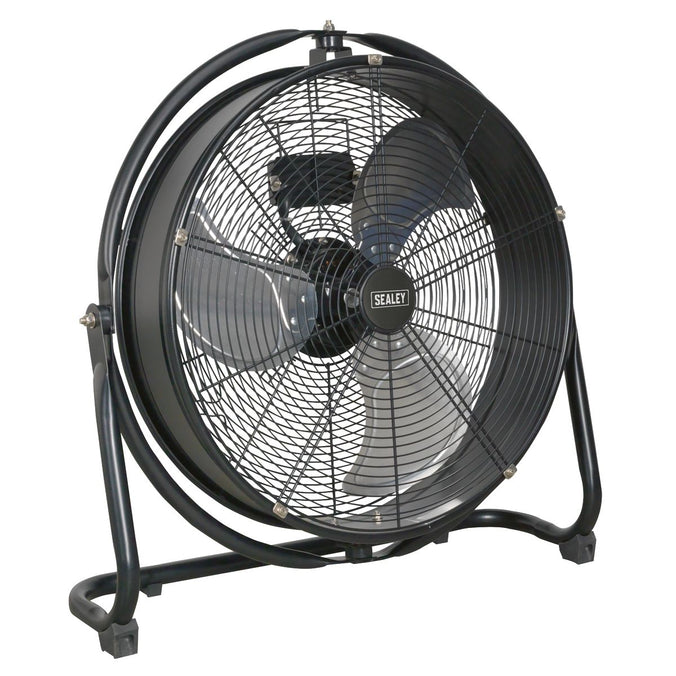

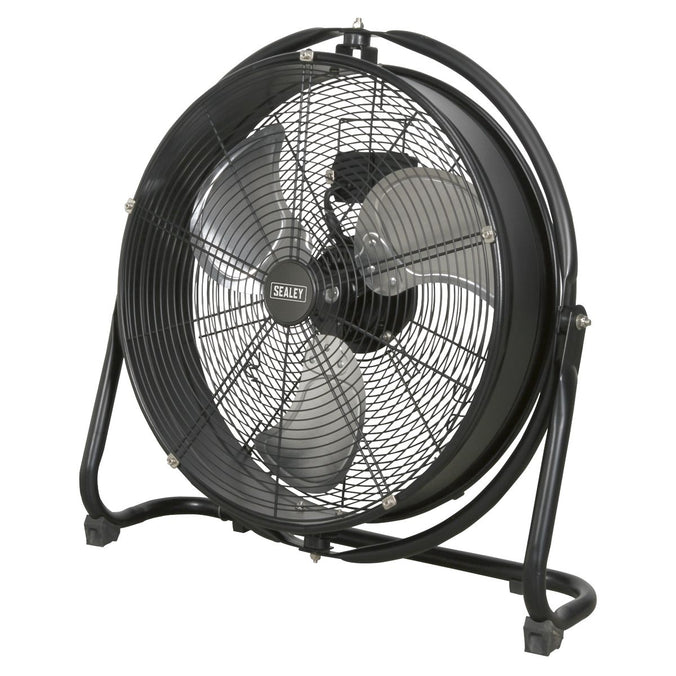

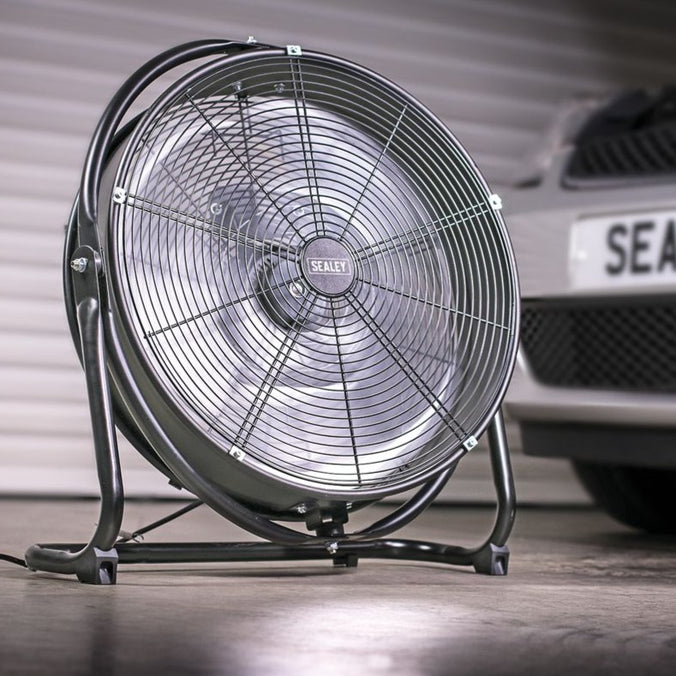

20 inch diameter

• Speed range: 1,100-1,350rpm
• Speeds: Three
• Maximum airflow: 123.5mᶾ/min (4,361cfm)

24 inch diameter

• Speed range: 1,300-1,400rpm
• Speeds: Two
• Maximum airflow: 210m³/min (7,400cfm)

30 inch diameter

• Speed range: 1,250-1,350rpm
• Speeds: Two
• Maximum airflow: 240m³/min (8,475cfm)
