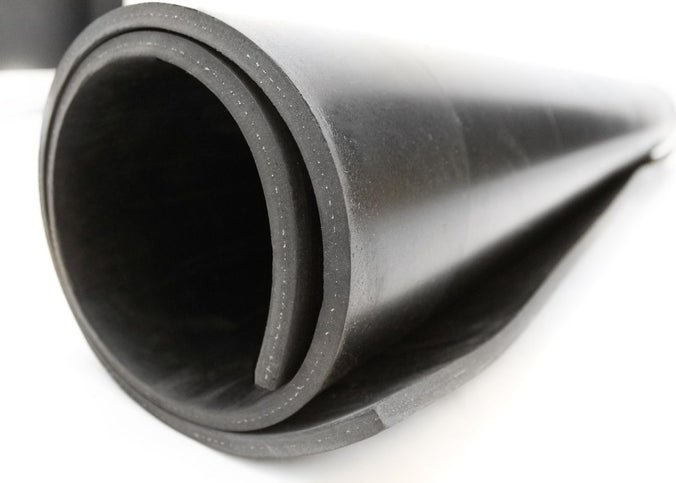

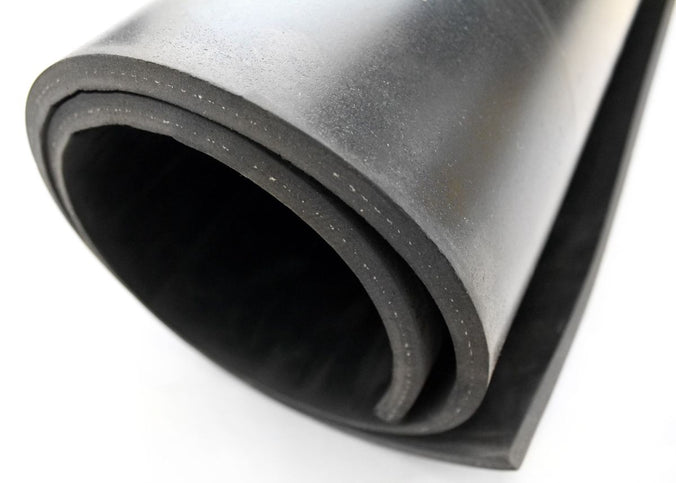

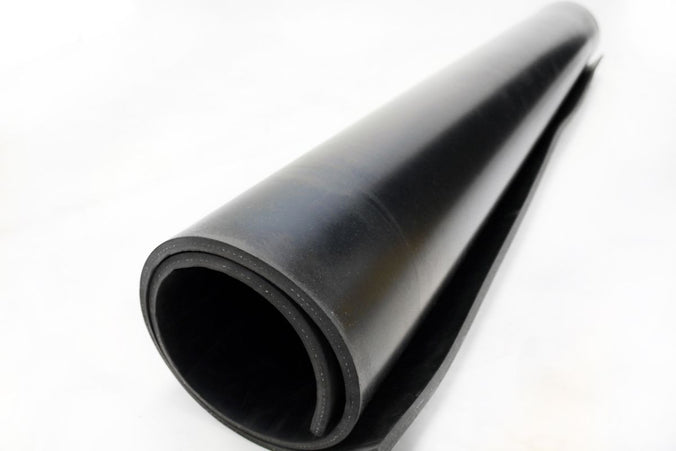

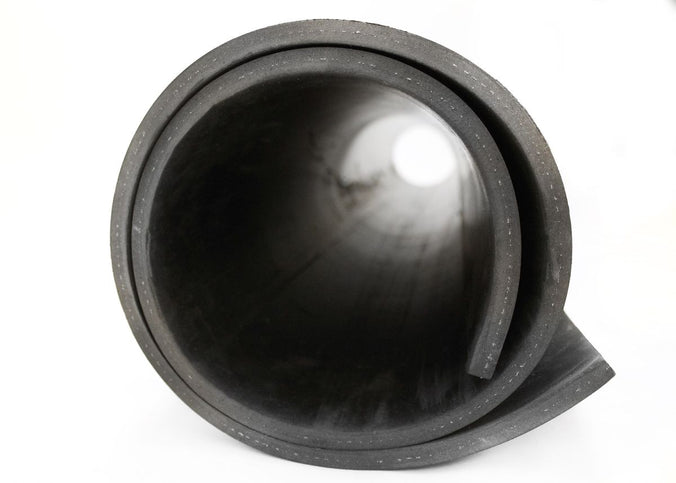

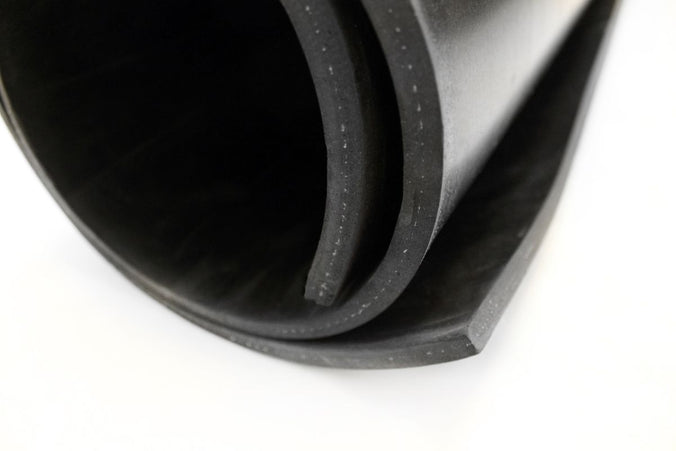

Reinforced Insertion Rubber Sheet Roll (SBR) 1.8mm to 12mm
Part No.: 11926/18/1401
-
High Compression Load Applications: Designed for demanding tasks, this reinforced rubber sheet is robust and reliable.
-
Customisable Sizes: Available in thicknesses from 1.8mm to 12mm and lengths up to 10 metres.
-
Durable Material: 70 Shore A hardness and a tensile strength of 3.4 MPa for excellent durability.
Reinforced SBR Rubber Sheet: High-Strength, Customisable Sizes
- High Compression Load Applications: The Reinforced Insertion Rubber Sheet Roll is designed for high compression load applications, making it a reliable and robust choice for demanding tasks.
- Custom Sizes: Available in custom sizes starting at just 50cm in length, this rubber sheeting is versatile and adaptable to your specific needs.
- High Tensile Strength: With a tensile strength at break of 3.4 Mpa, this rubber sheeting offers high durability and resilience, ideal for creating gaskets.
- 70 Shore A Hardness: This feature ensures the rubber sheeting's robustness and durability, making it suitable for heavy-duty applications.
- Elongation at Break: With an elongation at break of 190%, this rubber sheeting is designed to withstand high levels of strain without breaking.
- Natural Rubber (SBR): Made from Natural Rubber (SBR), this sheeting offers superior quality and performance.
- Temperature Resistant: With a maximum operating temperature of +70 degrees Celsius and a minimum operating temperature of -30 degrees Celsius, this rubber sheeting is suitable for a wide range of environments.
- Smooth Surface Finish: The smooth surface finish of this rubber sheeting not only enhances its aesthetic appeal but also ensures easy handling and application.
- Dimensions: Available in various thicknesses from 1.8mm to 12mm, with a roll width of 140cm and minimum length of 50cm. The roll length varies from 5 to 10 metres depending on the thickness chosen.
Our Reinforced Insertion Rubber is an extra strong rubber sheet designed for high compression load applications. Available in custom sizes starting at just 50cm in length, this cost-effective rubber sheeting is suitable for use in air, hot water, and hydraulic services.
The smooth surfaced, economical sheeting offers high tensile strength, making it popular for creating gaskets. With 70 Shore A hardness, a tensile strength at break of 3.4 Mpa, and an elongation at break of 190%, the Reinforced Insertion Rubber is built for durability and resilience.
Choose the Reinforced Insertion Rubber for a reliable and robust option in high compression load applications.
Sizes Available:
| Thickness | Width | Min Length | Roll Length |
|---|---|---|---|
| 1.8mm | 140cm | 50cm | 10 metres |
| 3mm | 140cm | 50cm | 10 metres |
| 4.5mm | 140cm | 50cm | 10 metres |
| 6mm | 140cm | 50cm | 10 metres |
| 10mm | 140cm | 50cm | 5 metres |
{{ shortname_placeholder }} - Product Specifications:
| Material | Natural Rubber (SBR) |
|---|---|
| Roll Width | 140cm |
| Hardness | 70 Degrees Shore A (+/-5) |
| Tensile Strength at Break | 3.4 Mpa |
| Elongation at Break | 190% |
| Density | 1.6g/cm3 |
| Outdoor Suitable | No |
| Max Operating Temperature | +70 degC |
| Min Operating Temperature | -30 degC |
| Surface Finish | Smooth |
Data Sheets:
For any additional information, please contact our team for assistance.
- Made from high-quality reinforced SBR rubber for durability
- Custom sizes available starting from 50cm in length
- Tensile strength of 3.4 MPa and elongation at break of 190% for resilience
- 70 Shore A hardness for robustness and heavy-duty applications
- Temperature resistance from -30°C to +70°C
- Smooth surface finish for ease of application
- Ideal for high compression load applications, such as gaskets and hydraulic services
Delivery Costs
- Standard delivery cost - £7.95 +VAT
- Highlands and Islands - £22.50 +VAT
- Northern Ireland - £POA
If you're getting bigger items sent to the Highlands & Islands, there might be an extra charge. We'll let you know when you order, or please get in touch with us if you are unsure.
Product Specifications:
Reinforced Insertion Rubber Sheet Roll (SBR) 1.8mm to 12mm
Rated “Excellent” on
| Material: | Natural Rubber (SBR) |
|---|---|
| Roll Width: | 140cm |
| Thickness Options: | 1.8mm to 12mm |
| Tensile Strength: | 3.4 MPa |
| Elongation at Break: | 190% |
| Hardness: | 70 Degrees Shore A (+/-5) |
| Surface Finish: | Smooth |
| Min Length: | 50cm |
| Max Roll Length: | 10 metres (5 metres for thicker rolls) |
| Operating Temperature Range: | -30°C to +70°C |
| Outdoor Suitability: | No |
| Reinforcement: | Designed for high compression loads |
Need help choosing?
Not sure which size or colour is right for your entrance? Request a free sample or speak to our team for advice.
Durable and Versatile Reinforced SBR Rubber Sheets
The Reinforced Insertion Rubber Sheet Roll provides a strong, durable, and adaptable material for demanding applications. Made from high-quality SBR rubber, it features a tensile strength of 3.4 MPa and 70 Shore A hardness, ensuring reliable performance under high compression loads. Ideal for gaskets, hydraulic services, and industrial use, it is available in custom sizes, with thicknesses from 1.8mm to 12mm and lengths up to 10 metres. With excellent resistance to temperatures from -30°C to +70°C, this smooth-surfaced sheet is easy to handle and apply.
- High Strength: Designed for high compression load applications with a tensile strength of 3.4 MPa.
- Custom Sizes: Available in thicknesses from 1.8mm to 12mm and lengths up to 10 metres.
- Durable and Resilient: Features 70 Shore A hardness and elongation at break of 190%.
- Temperature Resistant: Operates between -30°C and +70°C for versatility.
- Smooth Finish: Ensures ease of handling and precise application.
- Cost-Effective: Reliable material for gaskets, seals, and hydraulic services.
- Indoor Use: Designed for controlled environments where high durability is needed.
“Good quality, swift delivery as promised.”
Questions before you buy?
Get quick answers about sizing, suitability, cleaning, delivery and returns.
-
This reinforced rubber sheet is ideal for high compression load applications, such as gaskets, seals, hydraulic services, and industrial use.
-
The ideal thickness depends on your application. Thinner sheets (e.g., 1.8mm) are suitable for lighter tasks, while thicker sheets (e.g., 12mm) provide greater durability for heavy-duty use.
-
No, this sheet is designed for indoor use and is not suitable for prolonged outdoor exposure.
-
We ship our items through a variety of carriers. Once your item has been dispatched, we'll send you a tracking link whenever it's possible. That way, you can keep an eye on its journey right to your doorstep. Want to track an existing order? Visit your personalised account page for updates.
-
If you've had a change of heart and wish to return your order for a refund, we can usually accommodate this. However, please note that certain products are not returnable due to their custom nature or specific characteristics. Full details are available on our Delivery and Returns Information page.
