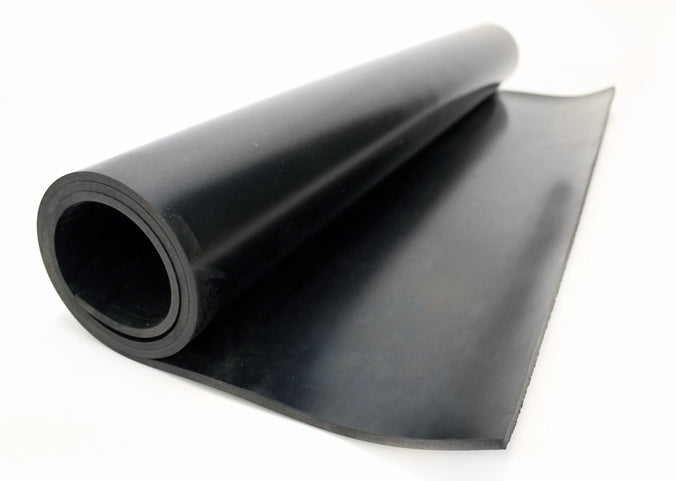

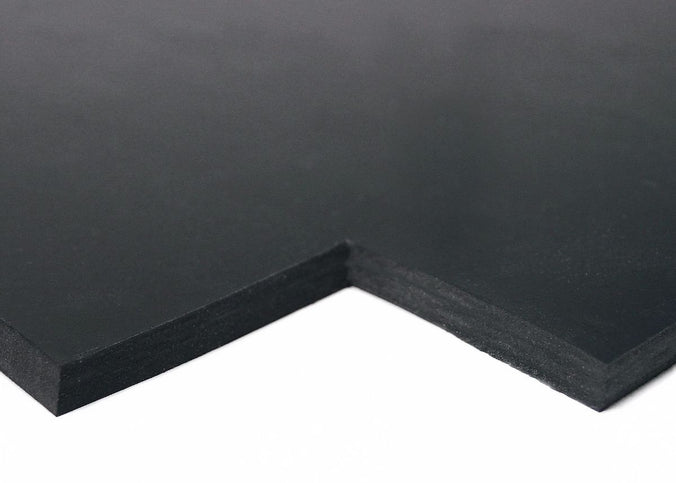

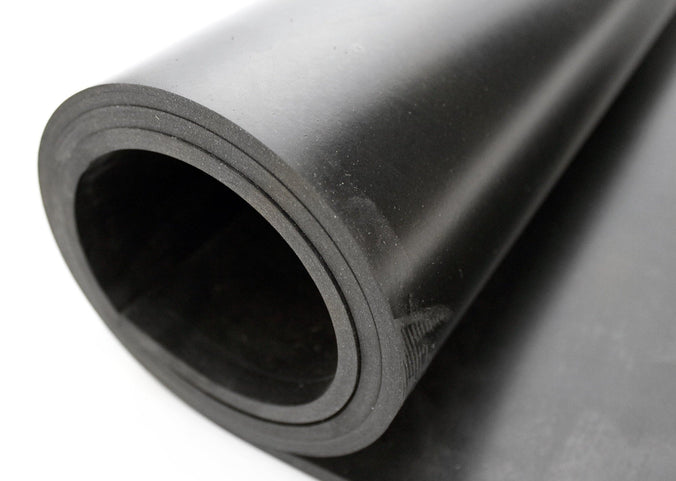

Nitrile Rubber Sheet Rolls

With it's resistance to Oils and Chemicals, our Nitrile Rubber Sheet is ideal for use in CNC machines and as a gasket material anywhere that Oil is present.

Our Nitrile Rubber Sheet is currently available in rolls of 10m length in a choice of four thicknesses which are 1.5mm, 3mm, 4.5mm and 6mm

Compared with standard commercial black rubber, our Nitrile rubber offers strong resistance to heat aging which provides a key advantage over natural rubber for the automotive industries.


  • Effective abrasion resistance.
  • 62 degrees shore A hardness.
  • Tensile strength at break: 5.0 Mpa.
  • Elongation at break: 200%

For more information, please click on the Data Sheet tab

Data Sheet:

  • Material: Major components - nitrile-Butadine rubber (NBR), Styrene-Butadine rubber (SBR), white carbon black. Minor components - Zinc oxide, Sulfur, Accelerators / Activators (< 1 % ), Antioxidant / Stabilizers (<1 % )
  • Surface Finish: Smooth
  • Product Height: 1.5mm-8mm
  • Operating Temperature: -30°C to +80°C
  • Resistance to Chemicals: Excellent resistance to oils, fuels, petroleum and most solvents
  • Product Performance: Test Temperature 25°C Relative Humidity 35% Correlation criterion GB/T528-1998 GB/T3512-1989 GB/T531-1992
  • Country of Origin: China
  • All orders to mainland UK are free
  • Additional charges may apply for highlands and islands
  • Please contact us if you require a quote on next day delivery or international shipping.
