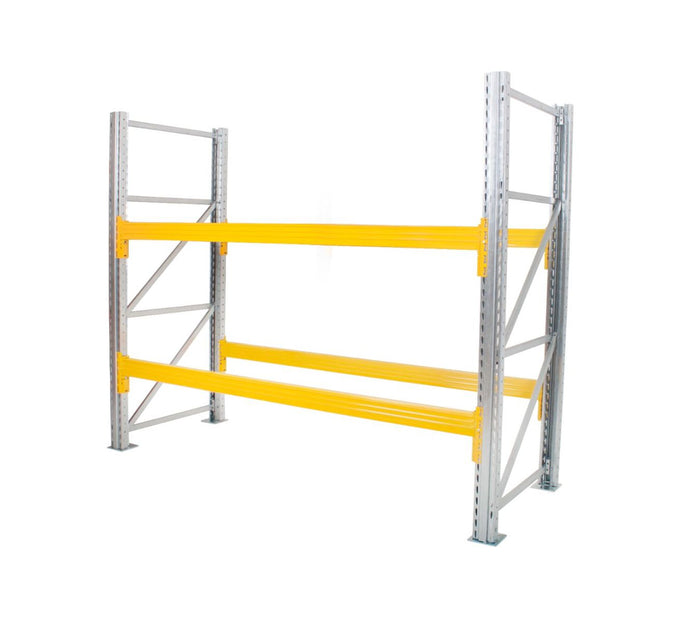

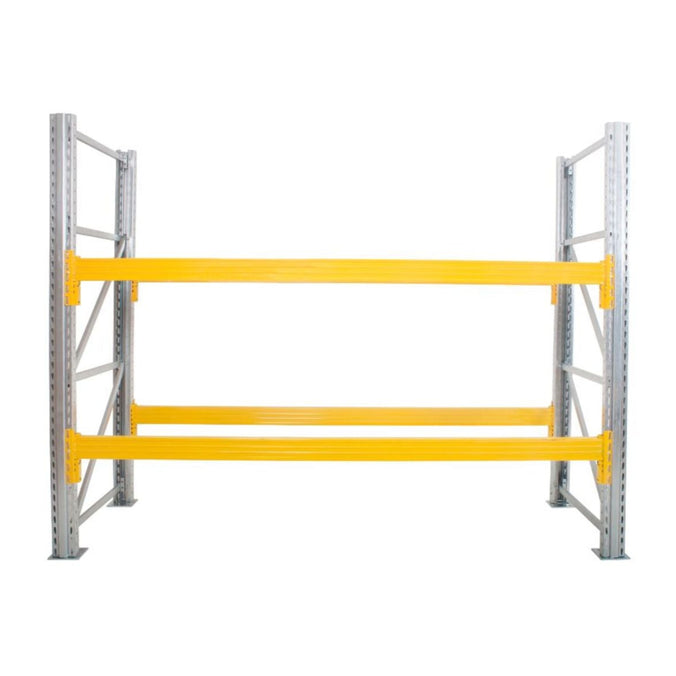

Adjustable Pallet Racking System (APR) 1100mm Deep
Part No.: 12873/2500/1350
-
Extra-Deep Storage: 110cm frame width provides increased space for bulkier pallet loads.
-
High Load Capacity: Supports up to 11,000kg for secure, heavy-duty storage.
-
Customisable Design: Multiple height and beam length options for a tailored fit.
1100mm Deep Pallet Racking: Robust, Customisable, High-Capacity Storage
- Heavy-Duty Pallet Racking System: A robust and versatile storage solution, designed to maximise your storage space and enhance your business operations.
- Galvanised Steel Construction: The system includes two 1100mm wide end frames made of galvanized steel, ensuring durability and long-lasting performance.
- Yellow Racking Beams: Comes with two pairs of yellow racking beams, providing a strong and sturdy platform for your pallets.
- Stability and Safety: Included metal feet provide stability, while comprehensive bracings and fixings ensure the system is secure and safe to use.
- Customisable Dimensions: The end frames can be ordered in sizes ranging from 2500mm to 6000mm in height, while the beams range from 1350mm to 3300mm in length, allowing you to tailor the system to your specific needs.
- High Load Capacity: With a frame loading capacity of 11000kg, calculated with a beam pitch of 1500mm and a run of 5 x 2700mm wide bays, this system is capable of handling heavy-duty loads.
- Compatibility: The system is compatible with our range of pallet decking, accessories, and additional beams, providing you with a comprehensive and flexible storage solution.
- Galvanised Steel Material: Made from galvanised steel, this racking system offers superior resistance to corrosion and wear, ensuring it withstands the test of time.
- Dimensions: The end frame size is 1100mm (W) x 2500mm - 6000mm (H), and the beam length ranges from 1350mm to 3300mm, making this system both spacious and adaptable to your storage needs.
Maximise your storage space with our robust Heavy-Duty Pallet Racking system. Customisable to your specific needs, this system is designed to securely store pallets, enhancing your business operations.
Key Features:
- 1100mm wide galvanised steel end frames
- Two pairs of yellow racking beams
- Included metal feet for stability
- Comprehensive bracings and fixings
- Compatible with pallet decking and accessories
Our Heavy-Duty Pallet Racking system is a versatile storage option. The system includes two 1100mm wide galvanised steel end frames, two pairs of yellow racking beams, metal feet, and all necessary bracings and fixings. The end frames can be ordered in sizes ranging from 2500mm to 6000mm in height, while the beams range from 1350mm to 3300mm in length, allowing you to customise the system to your specific needs. The frame loading capacity is 11000kg, calculated with a beam pitch of 1500mm and a run of 5 x 2700mm wide bays. The system is also compatible with our range of pallet decking, accessories, and additional beams, providing you with a comprehensive and flexible storage option.
The Heavy-Duty Pallet Racking System 110cm Deep features robust galvanised steel construction, ensuring durability and longevity. With end frame sizes ranging from 2500mm to 6000mm in height, it accommodates various storage needs. The beam lengths span from 1350mm to 3300mm, providing flexibility in load distribution. Each frame boasts an impressive loading capacity of 11000kg, making it ideal for heavy-duty applications. The beam pitch is set at 1500mm, optimising space utilisation. This system includes five bays, each 2700mm wide, and is compatible with pallet decking, accessories, and additional beams, offering a versatile storage option.
| End Frame Size | 1100mm (W) x 2500mm - 6000mm (H) |
|---|---|
| Beam Length | 1350mm - 3300mm |
| Frame Loading Capacity | 11000kg |
| Beam Pitch | 1500mm |
| Run | 5 x 2700mm wide bays |
| Material | Galvanised Steel |
| Compatibility | Pallet decking, accessories and additional beams |
- 1100mm wide galvanised steel end frames for maximum durability
- Two pairs of yellow racking beams included
- Stability ensured with metal feet, bracings, and fixings
- Adjustable height from 2500mm to 6000mm
- Beam length options from 1350mm to 3300mm
- Frame loading capacity up to 11,000kg
- Compatible with pallet decking and additional accessories
Delivery Costs
- Standard delivery cost - £7.95 +VAT
- Highlands and Islands - £22.50 +VAT
- Northern Ireland - £POA
If you're getting bigger items sent to the Highlands & Islands, there might be an extra charge. We'll let you know when you order, or please get in touch with us if you are unsure.
Product Specifications:
Adjustable Pallet Racking System (APR) 1100mm Deep
Rated “Excellent” on
| End Frame Width: | 1100mm |
|---|---|
| End Frame Height Options: | 2500mm - 6000mm |
| Beam Length Options: | 1350mm - 3300mm |
| Frame Loading Capacity: | 11,000kg |
| Material: | Galvanised Steel |
| Additional Features: | Compatible with pallet decking, accessories, and additional beams |
Need help choosing?
Not sure which size or colour is right for your entrance? Request a free sample or speak to our team for advice.
Deep, High-Capacity Storage for Bulk Pallets
The Heavy-Duty Pallet Racking System 110cm Deep is engineered for durability and efficiency. With a wider frame width of 1100mm, it accommodates bulkier loads while ensuring maximum stability. Constructed from galvanised steel, it is resistant to corrosion and wear. The system is fully compatible with pallet decking and additional accessories, making it a flexible storage solution.
- Enhanced Depth: 110cm frame width for bulkier loads.
- Customisable Options: Available in multiple heights and beam lengths.
- Maximum Durability: Built from corrosion-resistant galvanised steel.
- Heavy-Duty Performance: Supports up to 11,000kg for secure storage.
- Fully Expandable: Compatible with pallet decking and accessories.
“Good quality, swift delivery as promised.”
Questions before you buy?
Get quick answers about sizing, suitability, cleaning, delivery and returns.
-
This pallet racking system supports up to 11,000kg when configured with a beam pitch of 1500mm and a run of 5 x 2700mm wide bays.
-
Yes, you can customise the height (2500mm - 6000mm) and beam length (1350mm - 3300mm) to suit your storage needs.
-
Yes, the system is compatible with pallet decking, additional beams, and accessories for a complete storage solution.
-
For maximum stability, ensure the racking is installed on a level surface and properly fastened using the included metal feet, bracings, and fixings.
-
The system is made from galvanised steel, providing corrosion resistance and durability for long-term use.
