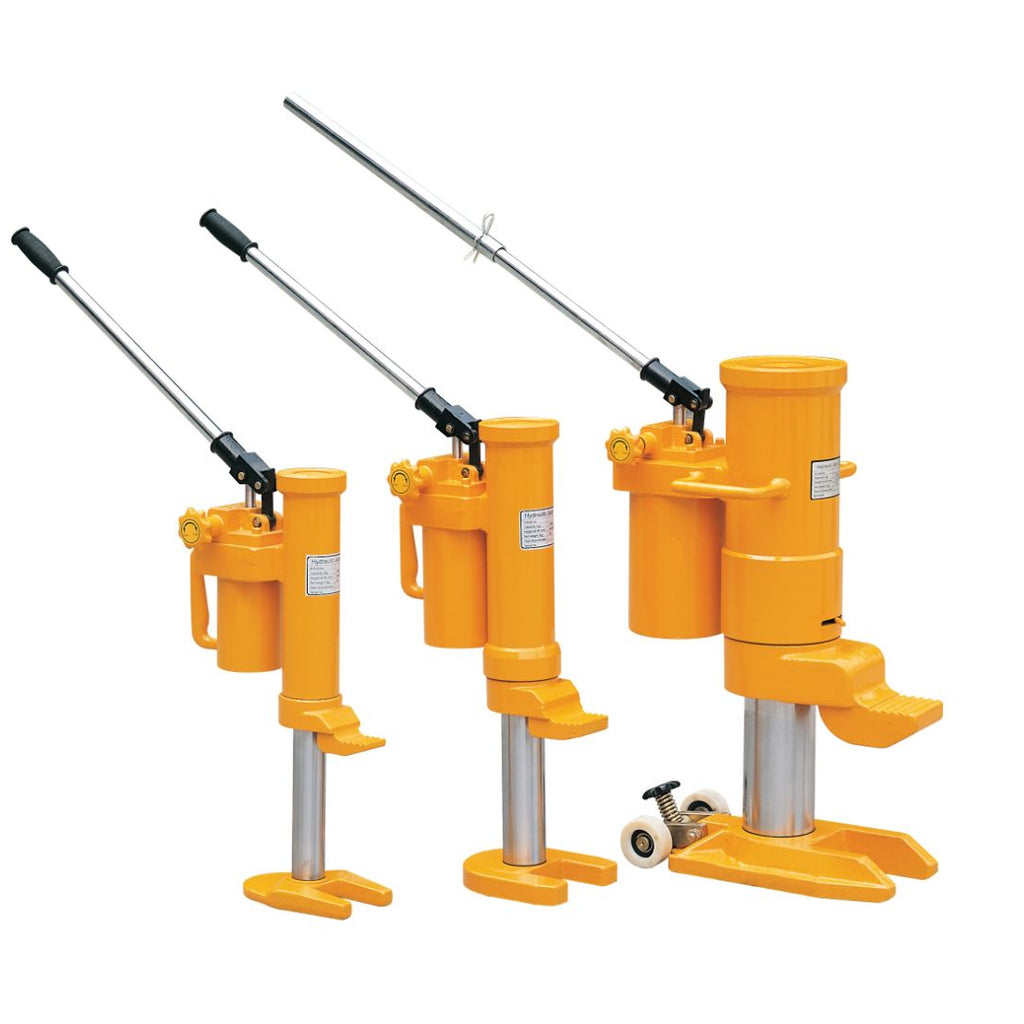

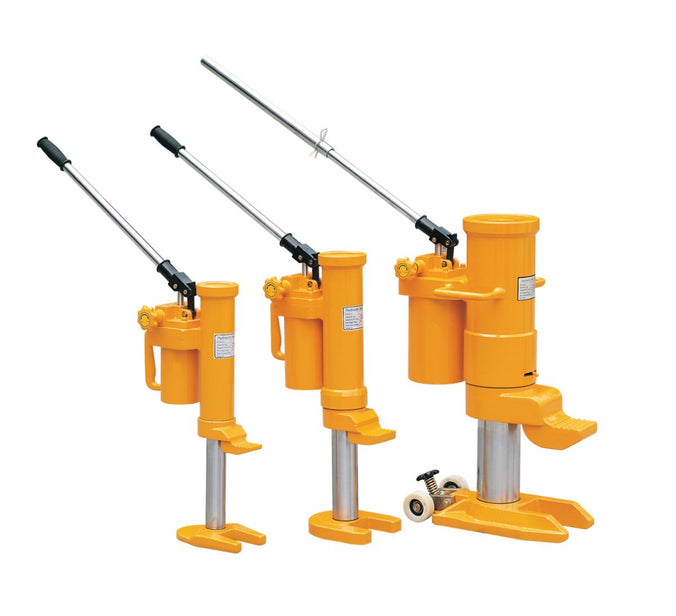

Rotational Hydraulic Toe Jacks (5 to 25 tonne)
  • Description
  • Data Sheet
  • Delivery

Rotational Hydraulic Toe Jacks (5 to 25 tonne)

This Rotational Hydraulic Toe Jack lifts very heavy machinery and other loads safely and smoothly. Plus it can be pumped in any position (sideways and even upside down), making it suitable for use in even tight or awkward spaces.

With a total lifting capacity of either 5,10 or 25 tonnes, it's ideally suited to:

  • Installing factory machinery, containers and other heavy items
  • Raising loads so that skates can be placed underneath them
  • Raising machinery for repair and maintenance
  • Moving machinery to another part of the workshop

The Rotational Hydraulic Toe Jack features:

  • An adjustable lowering speed, which gives precise control during use
  • An overload protection valve, to keep the jack working in top condition
  • Dual lifting capabilities, so you can lift with the toe or the head of the jack

All three versions feature a removable pump and housing that revolves 360 degrees. The largest 25 tonne version has wheels for easy manoeuvring.

Delivery is free in mainland UK, within 5 days.

Specifications

5 tonne capacity

  • Lift height on toe: 25mm to 220mm (single stage)
  • Lift height on head: 368mm to 573mm
  • Weight: 25kg

10 tonne capacity

  • Lift height on toe: 30mm to 260mm (single stage)
  • Lift height on head: 420mm to 650mm
  • Weight: 35kg

25 tonne capacity

  • Lift height on toe: 58mm to 273mm (2 stages)
  • Lift height on head: 505mm to 720mm
  • Weight: 102kg

Data Sheet:

Rotational Hydraulic Toe Jacks (5 to 25 tonne)

This Rotational Hydraulic Toe Jack lifts very heavy machinery and other loads safely and smoothly. Plus it can be pumped in any position (sideways and even upside down), making it suitable for use in even tight or awkward spaces.

With a total lifting capacity of either 5,10 or 25 tonnes, it's ideally suited to:

  • Installing factory machinery, containers and other heavy items
  • Raising loads so that skates can be placed underneath them
  • Raising machinery for repair and maintenance
  • Moving machinery to another part of the workshop

The Rotational Hydraulic Toe Jack features:

  • An adjustable lowering speed, which gives precise control during use
  • An overload protection valve, to keep the jack working in top condition
  • Dual lifting capabilities, so you can lift with the toe or the head of the jack

All three versions feature a removable pump and housing that revolves 360 degrees. The largest 25 tonne version has wheels for easy manoeuvring.

Delivery is free in mainland UK, within 5 days.

Specifications

5 tonne capacity

  • Lift height on toe: 25mm to 220mm (single stage)
  • Lift height on head: 368mm to 573mm
  • Weight: 25kg

10 tonne capacity

  • Lift height on toe: 30mm to 260mm (single stage)
  • Lift height on head: 420mm to 650mm
  • Weight: 35kg

25 tonne capacity

  • Lift height on toe: 58mm to 273mm (2 stages)
  • Lift height on head: 505mm to 720mm
  • Weight: 102kg
  • All orders to mainland UK are free
  • Additional charges may apply for highlands and islands
  • Please contact us if you require a quote on next day delivery or international shipping.
