Wall Mounted Vertical Pipe Protection Barriers

Data Sheet:

Wall Mounted Vertical Pipe Protection Barriers

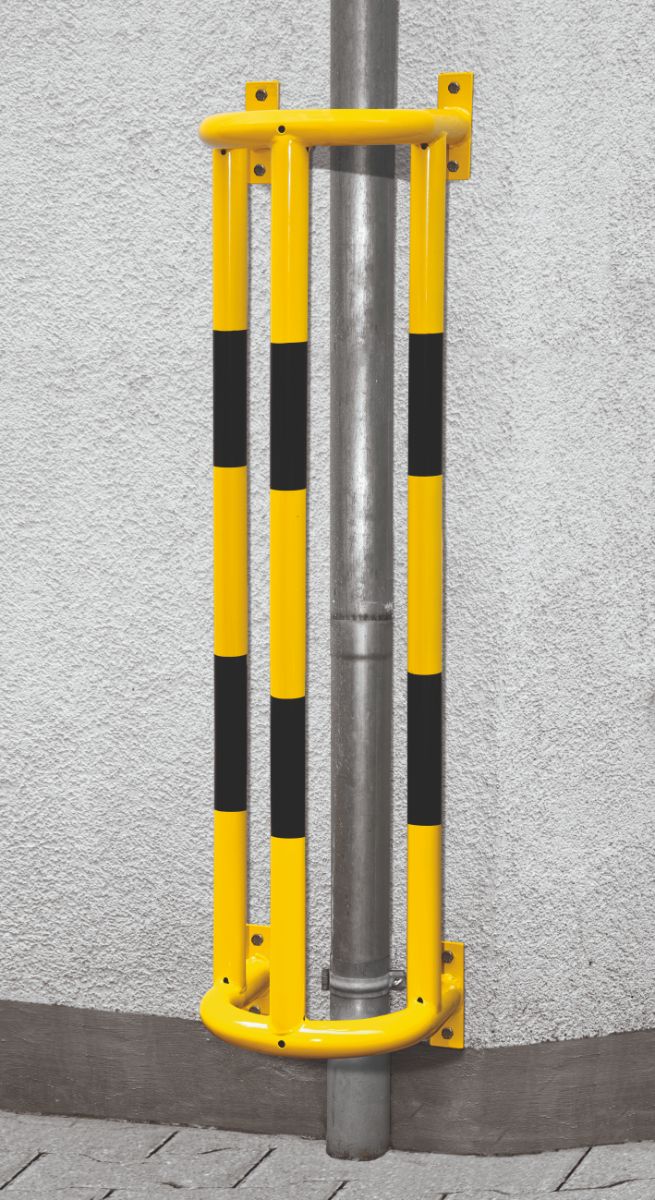

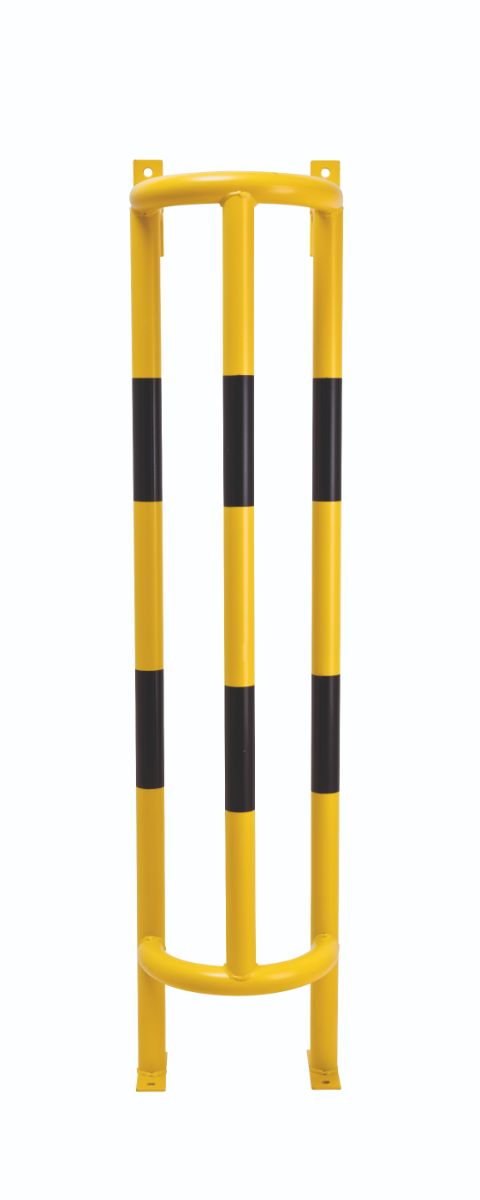

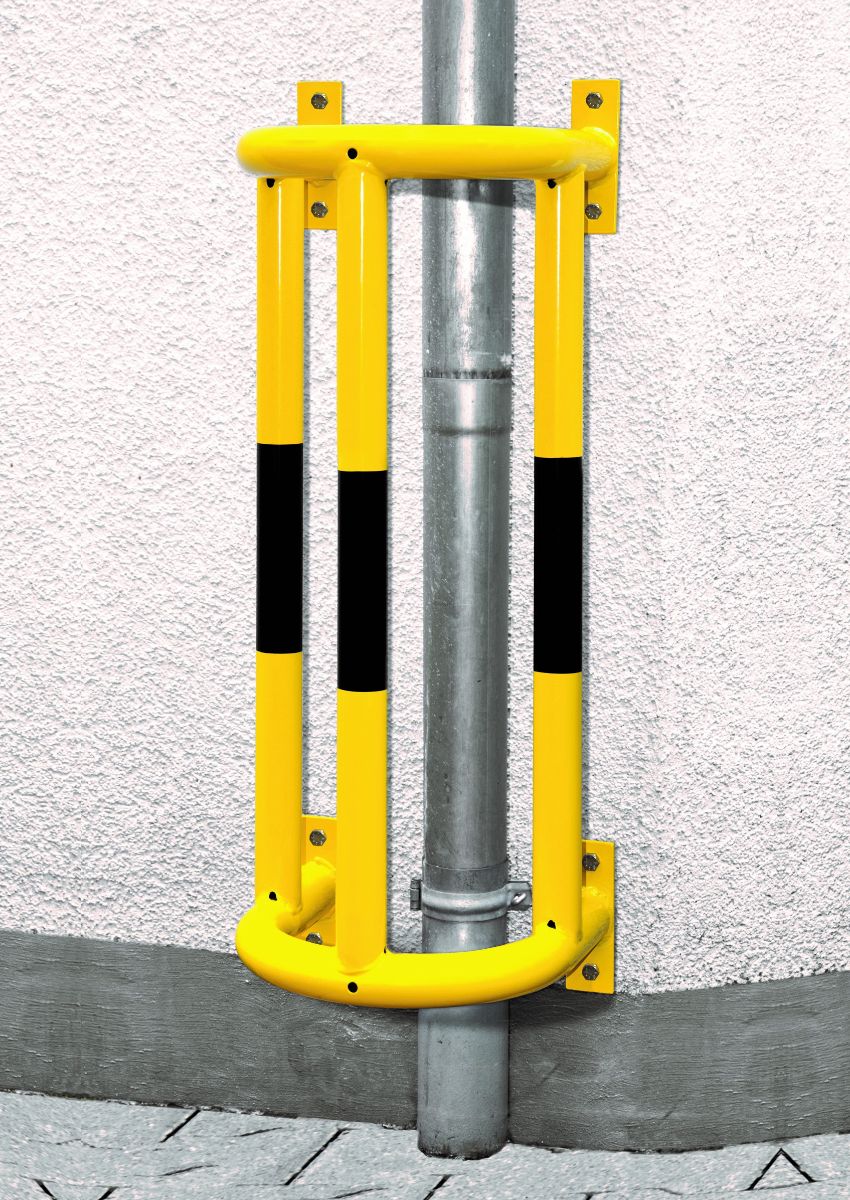

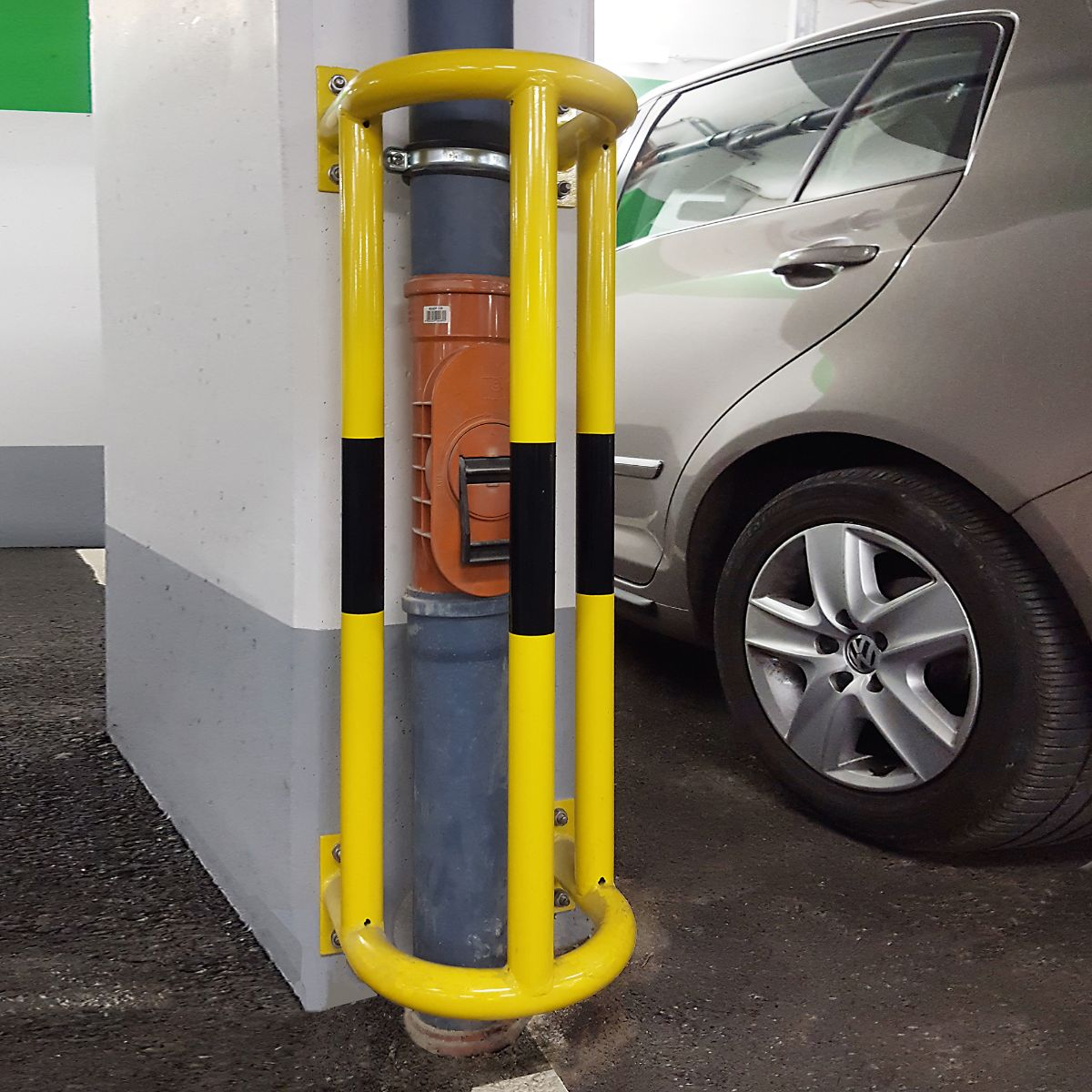

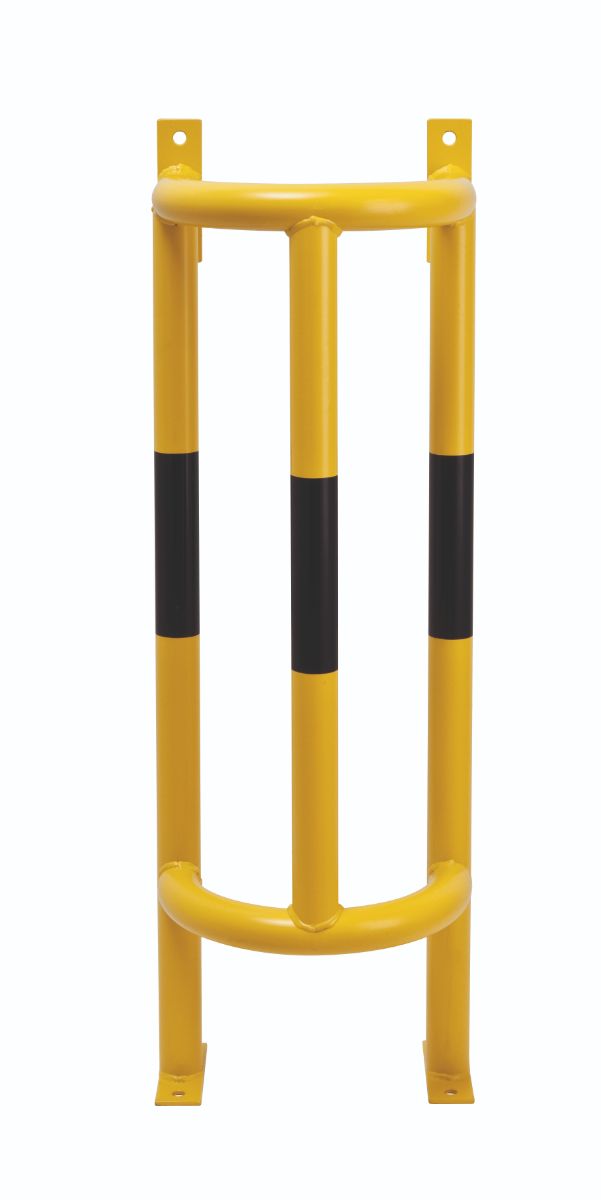

These Wall Mounted Vertical Pipe Protection Barriers are an ideal way to protect pipes, cables and ducts from accidental damage caused by passing vehicles. As well as providing a strong physical barrier, the bright yellow and black bands act as an effective safety sign. Drivers are alerted to keep well clear, even in low light.

The steel barriers are hot dip galvanised, for extra strength, and powder coated, so they can be used indoors and outside. Available in 10cm and 15cm heights, these wall mounted barriers are quickly and easily installed for permanent protection.

Specifications:

• Two sizes: 10cm (h) x 35cm (w) x 30cm (d) and 15cm (h) x 35cm (w) x 30cm (d)
• Internal: 250 x 275mm
• Diameter: 48mm
• Material: Galvanised steel
• Wall thickness: 2.0mm
• Finish: hot dip galvanised and powder coated
• Anchor plates: 150 x 50 x 5mm (drilled 2 holes per plate)
