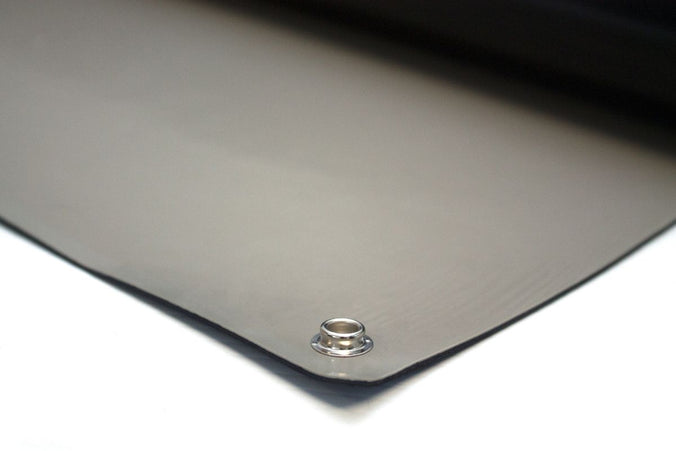

2 Layer Conductive Rubber Bench Matting - 60cm x 120cm

Conducive Rubber Bench Matting

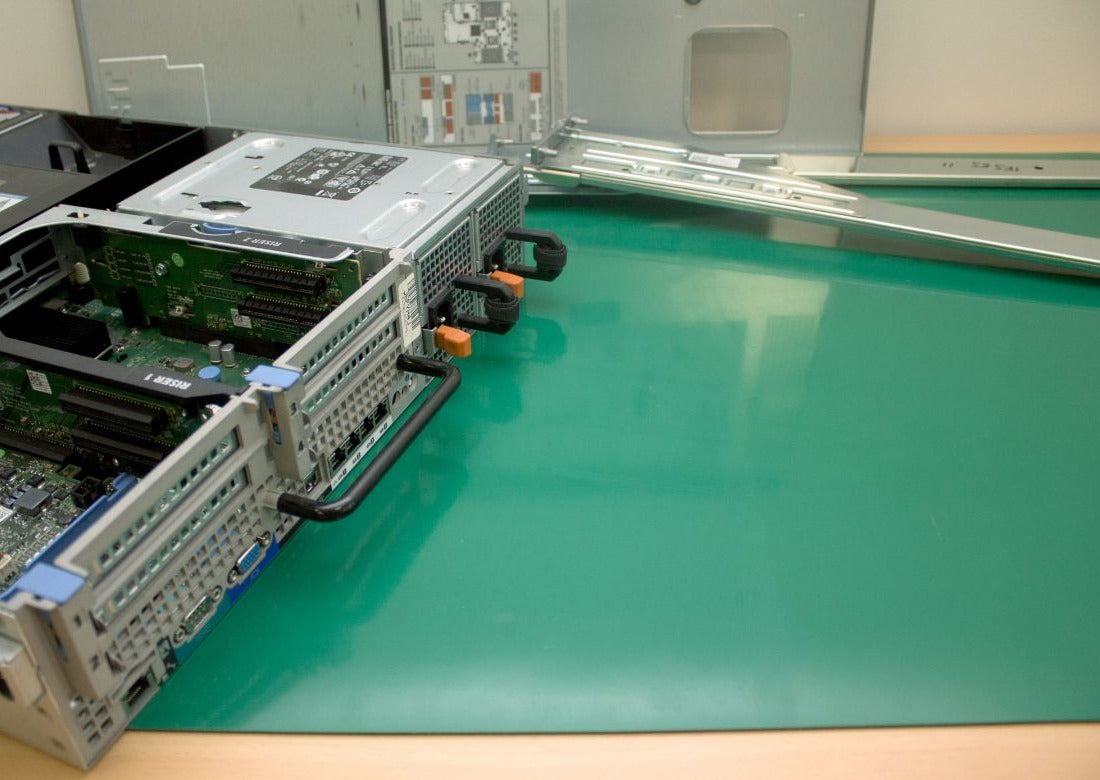

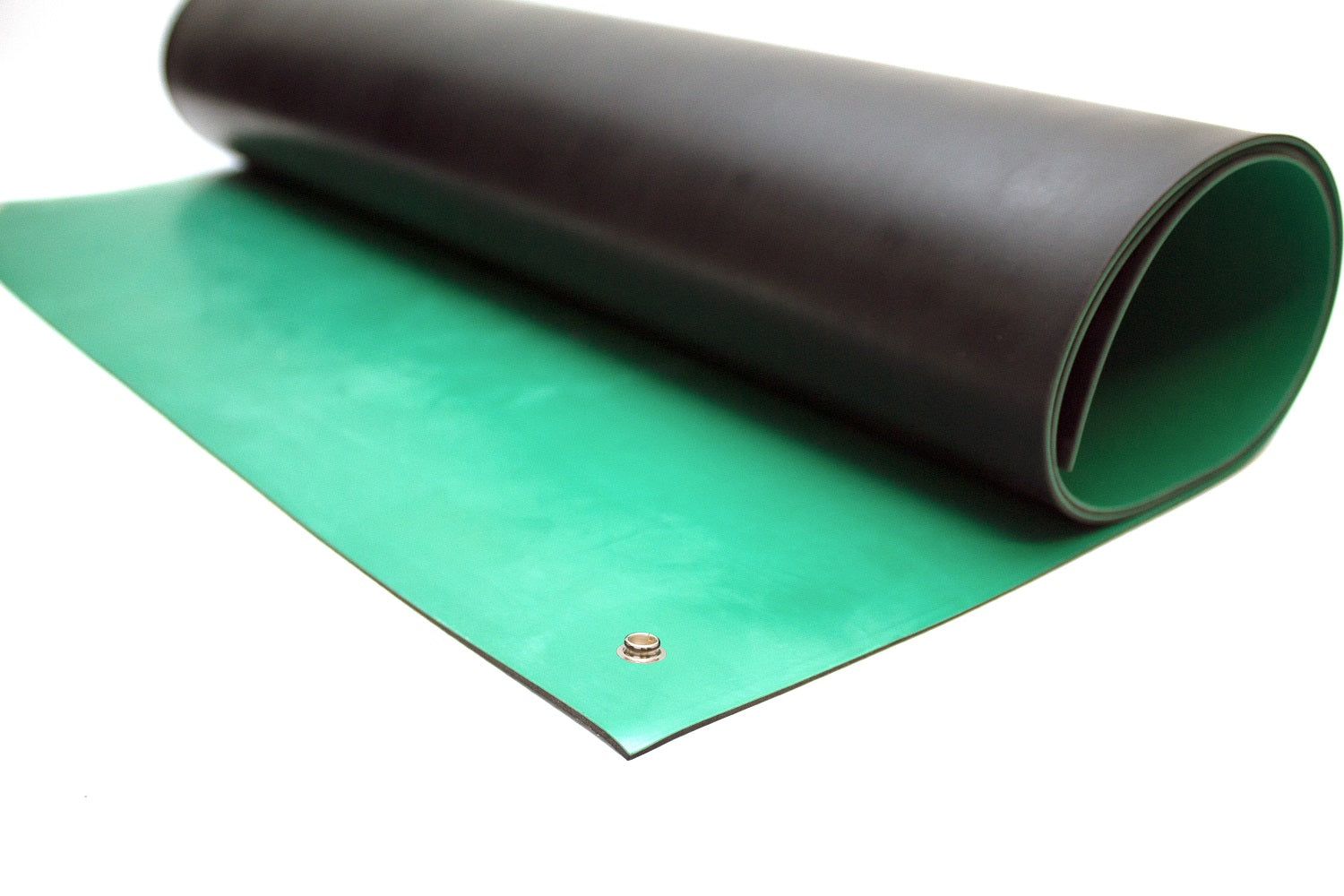

The Two-Layer Conductive Rubber Bench Matting is a great choice for electrical component manufacturing and refurbishment. The top surface is a 0.5mm thick static-dissipative layer, which is solder iron resistant and low reflecting. The bottom surface is black rubber that helps to protect worktops from damage. The mat is grounded via a 10 mm male stud fitted to the mat. It also conforms to IEC 61340-5-1.

• Two-layer rubber matting
• Size: 60cm x 120cm x 2mm
• Low reflecting surface
• Point to point resistance (Rp-p): 5.2 x 10⁷ Ω
• Resistance to a groundable point (Rgp): 2.7 x 10⁷ Ω

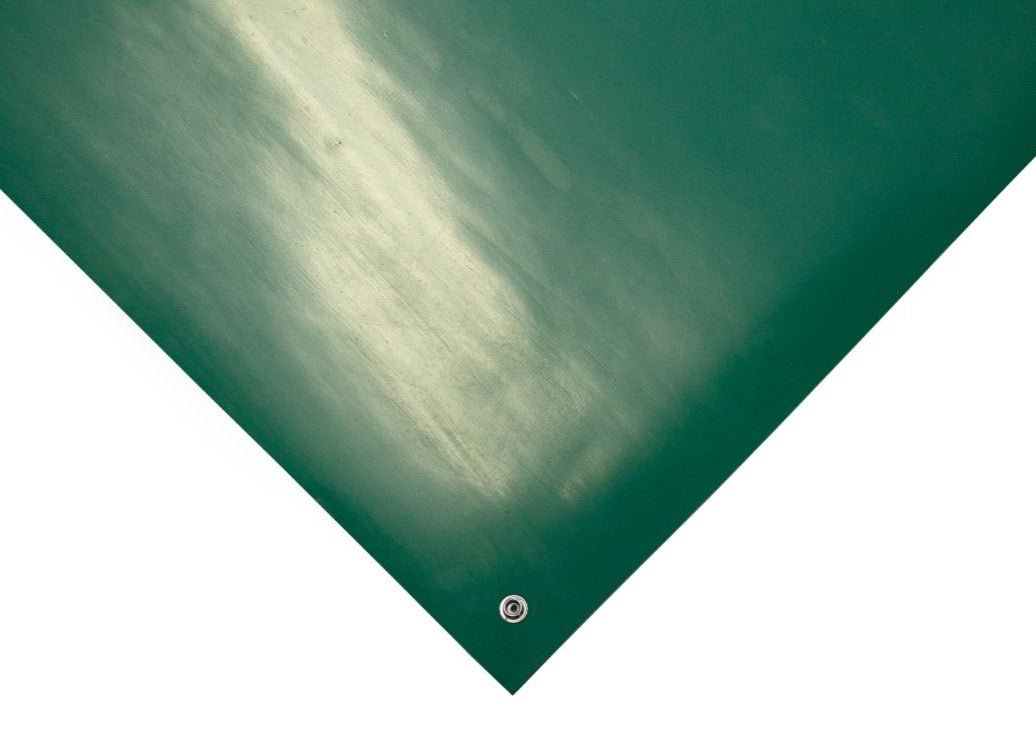

• Grounded via a 10mm male stud in the mat corner

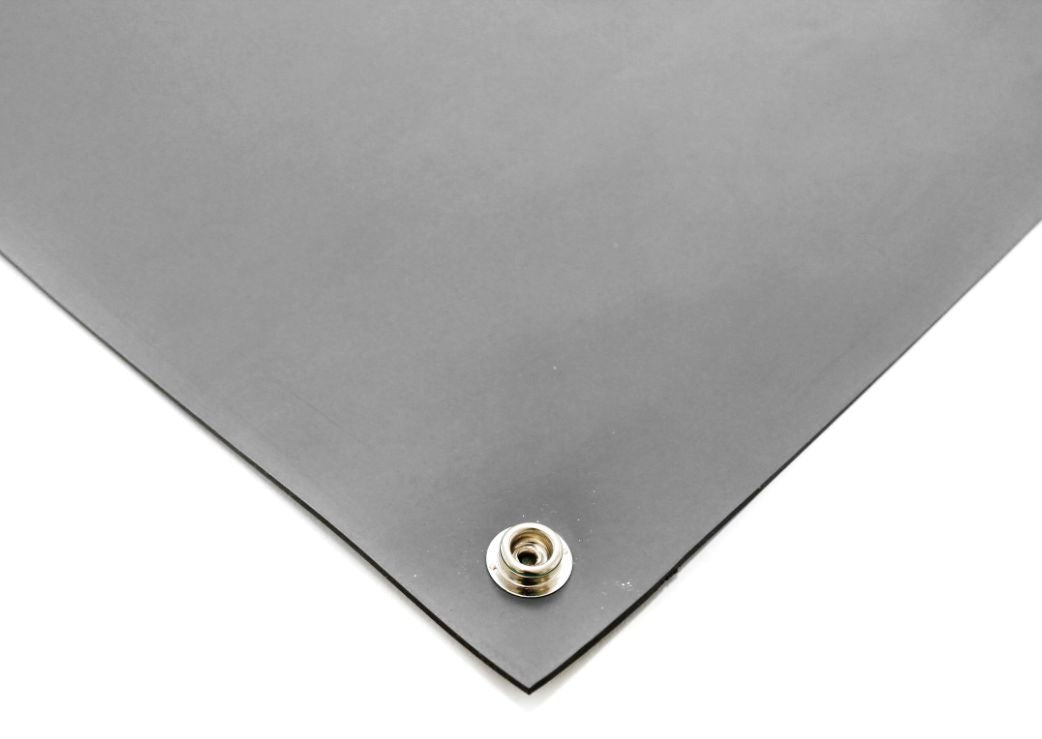

The mat features a 10mm press stud which can be used to connect earthing straps and wires.

Note: Accessories are not included and can be purchased separately.

How to use this mat

The electric mat must be connected by grounding wire and accessories to work.

The accessories needed are:

• Anti Static Wristband
• Coil Cord
• Common Point Ground Wire
• Earth Bonding Plug.

How do Anti Static Accessories Work With The Mat?

1. The Anti Wristband connects the wearer to the Coil Cord ( The Coil Cord allows the wearer easy movement.
2. The Coil Cord then attaches to the Common Point Ground Wire.
3. The male stud which is already included on the mat, connects to the Coil Cord and the Common Point Ground Wire.
4. The Grounding Wire connects the Bench Mat to the Earth Bonding Plug.
5. The Earth Bonding Plug fits into a wall socket, earthing any ESD ( ElectroStatic Discharge ).
