SwitchRib Electrical Rubber Insulating Matting

Introducing SwitchRib Electrical Insulating Matting - the specialist matting designed to protect operatives from electrical shocks. Conforming to the most recent internationally recognised safety standard IEC 61111:2009 /BS EN 61111:2009, SwitchRib is available in three thicknesses to meet the different classes of working voltage, making it ideal for use in front of switchboards and other high voltage equipment.

Class 0, Class 2 and Class 4 versions are all available, so you can be sure to find the right level of protection for your needs. Don't take chances with electrical safety - choose SwitchRib Electrical Insulating Matting.

SwitchRib is available in three thicknesses;

  • 3mm - BS EN 61111:2009 Class 0 (Working 1KV - Tested to 10KV)
  • 4mm - BS EN 61111:2009 Class 2 (Working 17KV - Tested to 30KV)
  • 5mm - BS EN 61111:2009 Class 4 (Working 36KV - Tested to 50KV)

Each of these can be purchased in either a 1m x 10m roll or in a custom length, simply enter the required length in CM and we will deliver the matting cut to size.

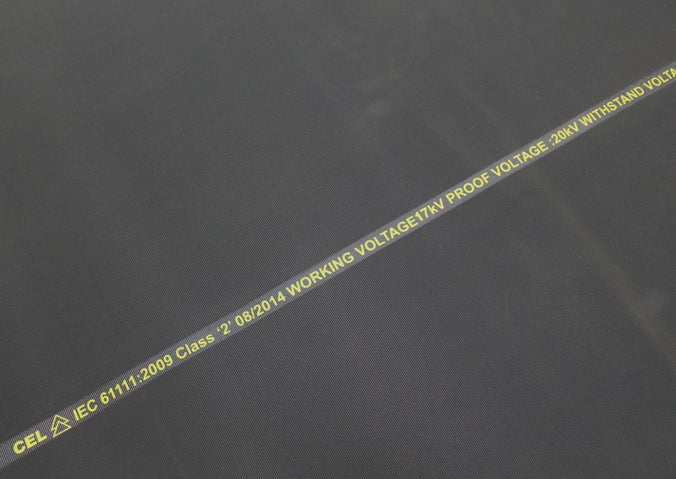

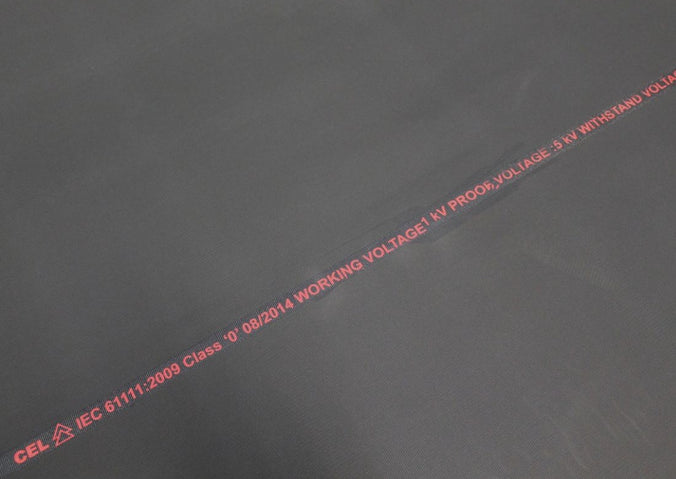

The classification of the matting is shown on the reverse of the insulating matting.

SwitchRib is also resistant to Acid and Oil, making it ideal for use in more challenging environments.

First Mats - Product Scores

Anti Fatigue Anti-Fatigue - 1/3 This mat offers Good anti-fatigue properties. This is measured by ASTM D3547 which records the compression and decompression of the mat. The higher the rating the better its anti fatigue qualities.
Slip Resistance Slip Resistance - 2/3 This mat provides Very Good slip resistance. This is measured by ASTM C1028-89 & DIN-E-51130, 51097 which tests the force required to cause slippage of a load across the mat. The higher the rating the higher the slip resistance
Wear Resistance Wear Resistance - 3/3 This mat offers Very Good resistance to wear. This is measured by ASTM D3844-92 which subjects the mat to 5000 cycles under an abrasive wheel. The higher the rating the longer the life span of the mat.
High Voltage Environments High Voltage - Suitable for high voltage environments
Oil Safe Oil Resistant - Some mats deteriorate with oil. This mat is Oil & Grease Resistant making it suitable for all Industrial and Food production areas where this is an issue.

  • Conforms to BS EN: 61111:2009
  • Mat thickness options meet the requirements for following working voltages
  • --- 3mm Class 0 - 1KV
  • --- 4mm Class 2 - 17KV
  • --- 5mm Class 4 - 36KV
  • Resistant to acid, oil and low temperatures
  • Very good wear resistance
  • Good slip resistance and anti-fatigue properties
  • Colour coded tape on rear of mat giving classification

Note: Price shown excludes any accessories shown in the images

Data Sheet:

  • Material: EPDM Rubber
  • Surface Finish: Ribbed
  • Product Thickness: 3mm or 4mm or 5mm
  • Operating Temperature: -30°C to +80°C
  • Environmental Resistance: Resistant to acid, oil, and low temperatures
  • UV Resistance: Yes

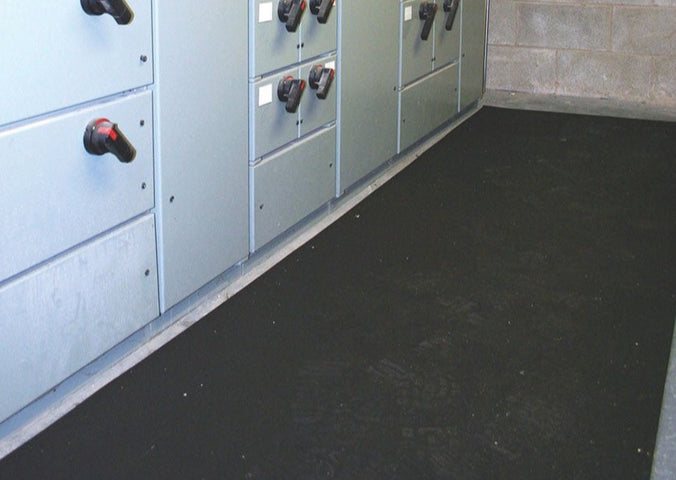

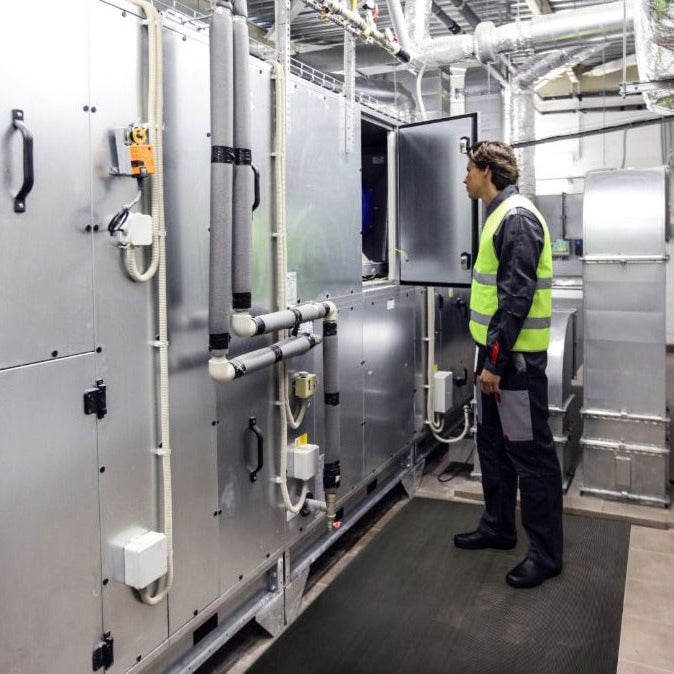

  • Typical Applications: Suitable for use in high voltage areas. Specifically designed for use in front of open switchboards or high voltage equipment. Product protects operators against electrical shocks
  • Installation Method: Loose lay
  • Cleaning Method: Hose down or pressure wash using a mild detergent
  • Flame Retardancy: Fire tested to EN 13501-1: Class Cfl - s2
  • Country of Origin: India

Estimated Delivery time: 3 to 5 working days

Need it sooner? Contact us for our quickest delivery time.

Delivery Costs

Free delivery on orders over £45.00 +VAT.

  • For orders under £45+VAT - £4.50 +VAT
  • Highlands and Islands - £22.50 +VAT
  • Northern Ireland - £29.95 +VAT

Prices above are based on a single standard-sized mat and can vary for larger and heavier items.
