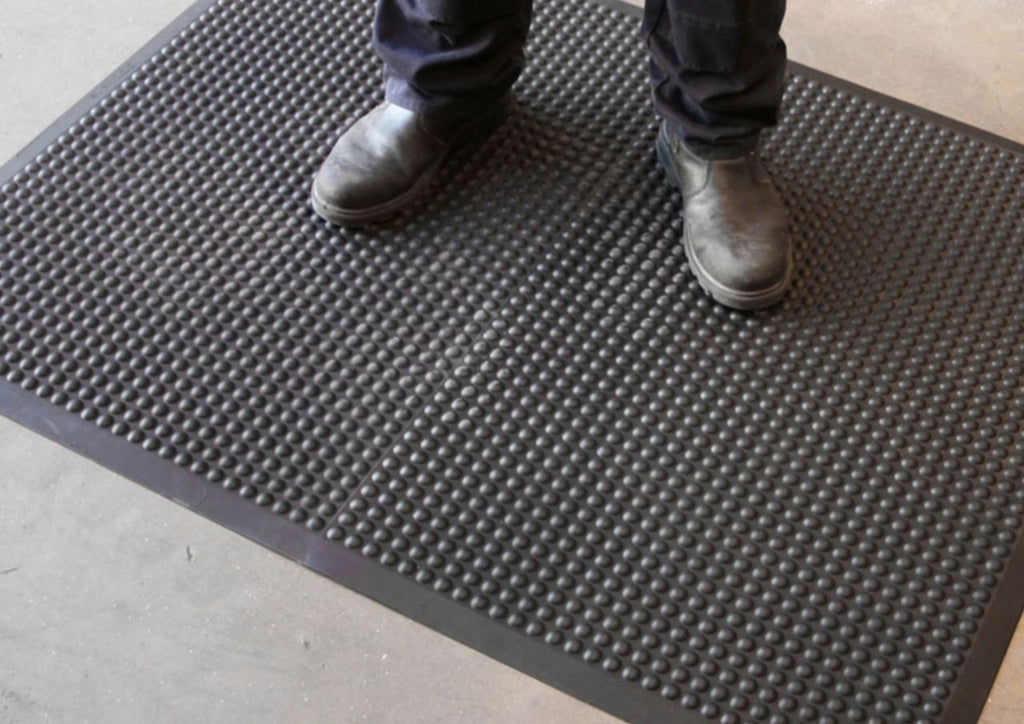

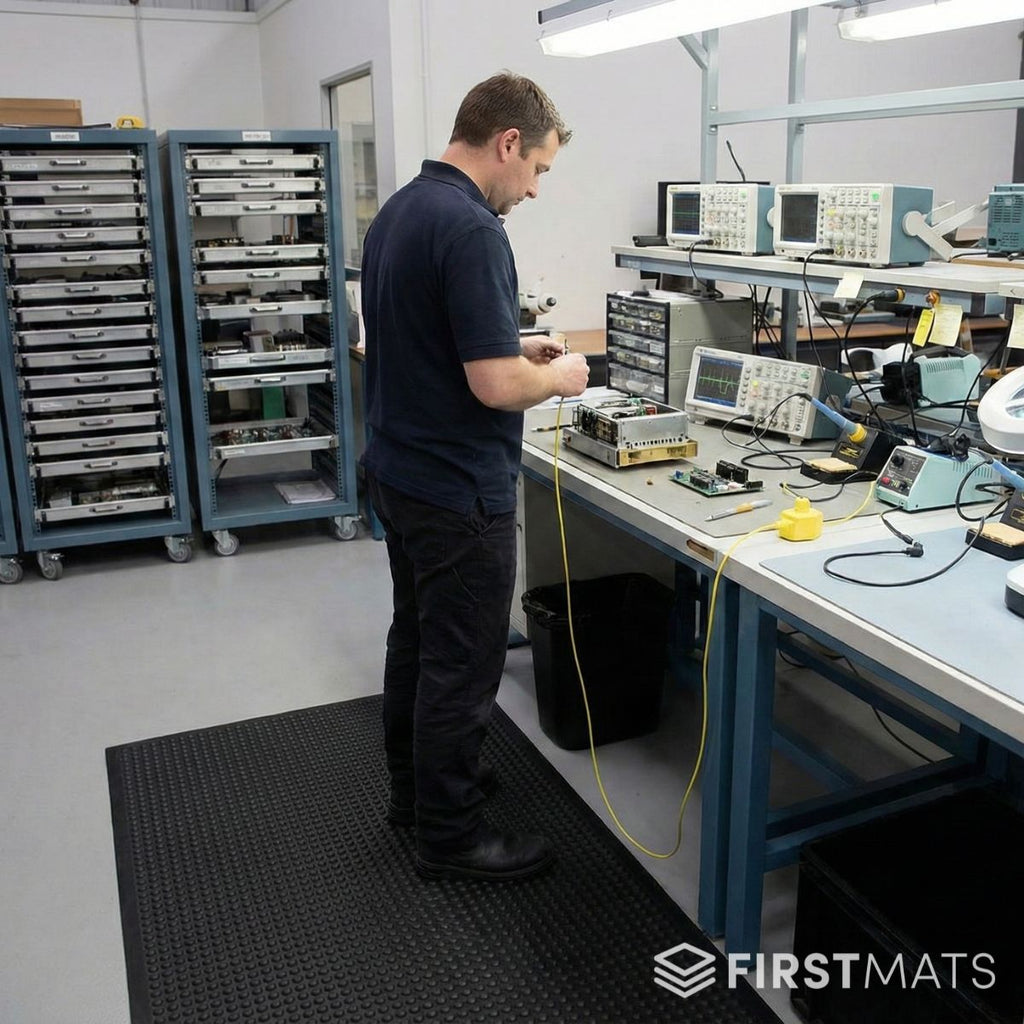

PremBubble is a superb Anti-Fatigue Mat designed to be used in areas where ESD (Electro-Static Discharge) presents a risk to electrical components and workers.

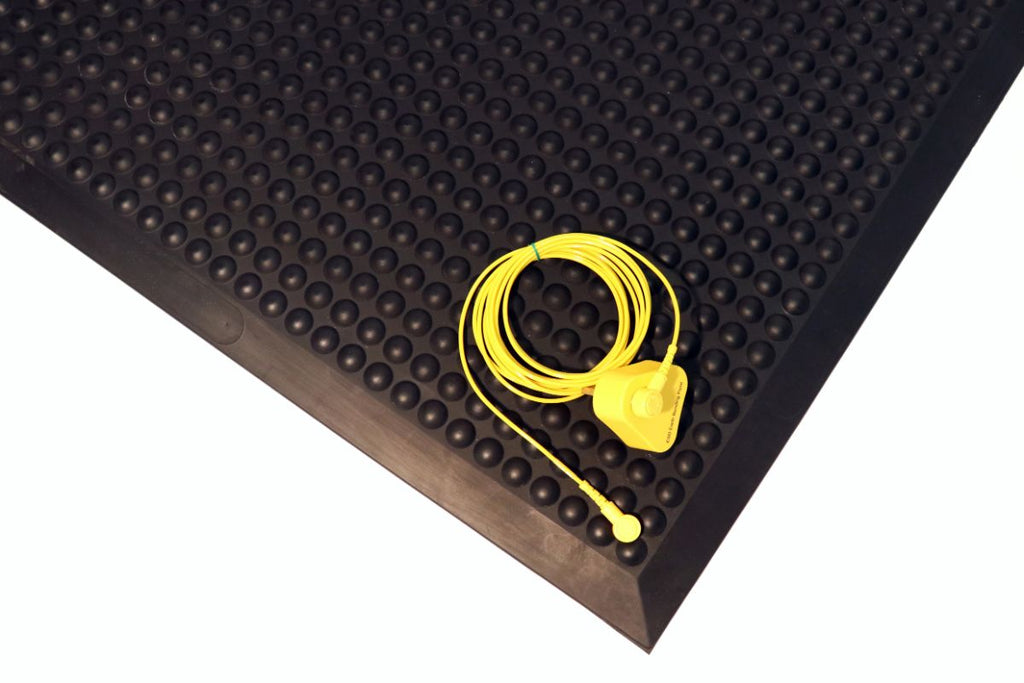

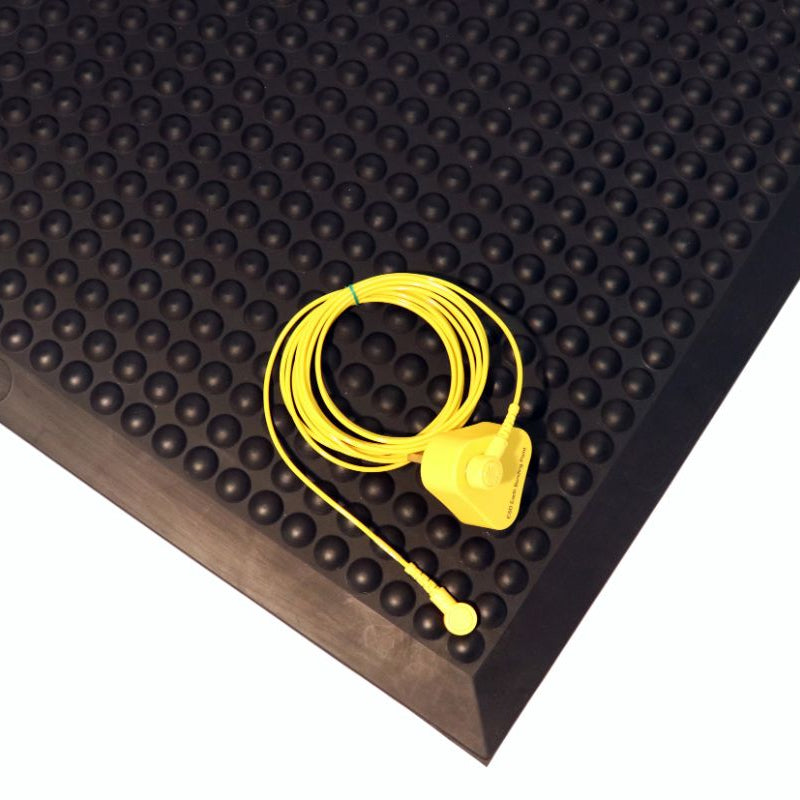

Note: Accessories such as earthing straps and cables are not included with this product but can be purchased separately.
PremBubble is available in two standard sizes, 60cm x 90cm and 90cm x 120cm, and can also be ordered in a custom width and length; For a custom size, please contacts us with the width and length for a quotation.

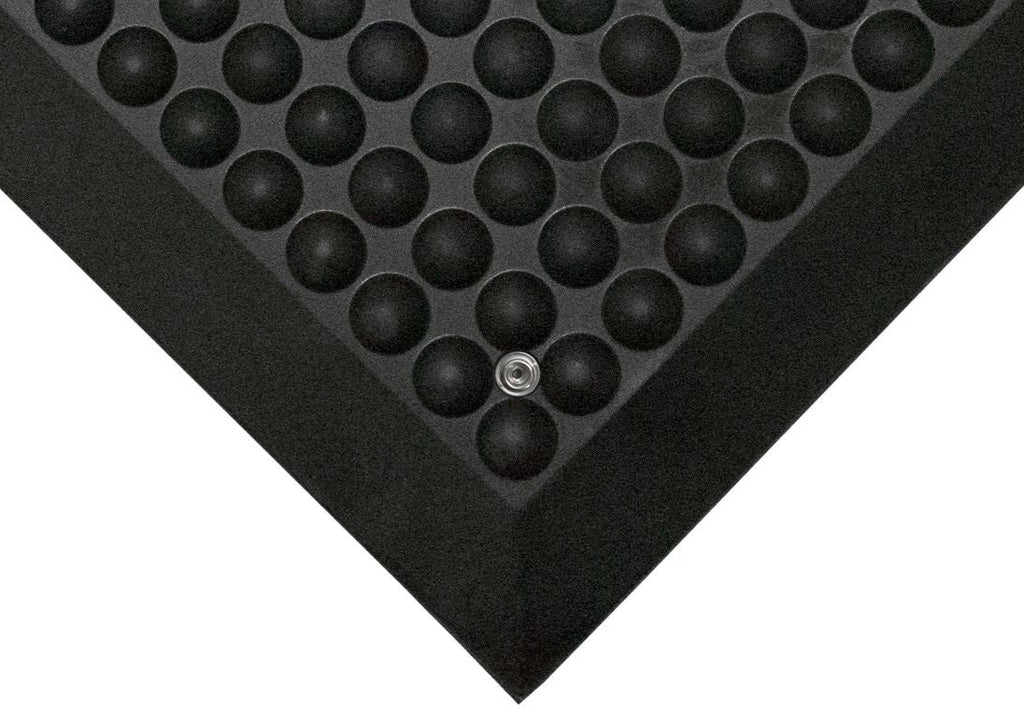

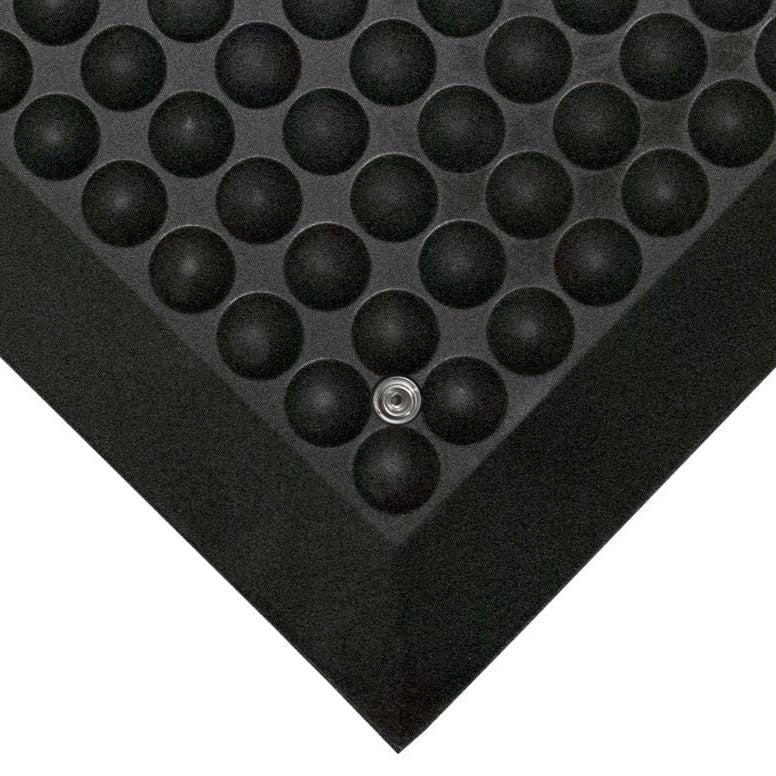

It is constructed from Polyurethane and finished with a bubbled surface, making it a great anti-fatigue mat as well as being static-dissipative. A conductive layer is buried underneath the surface to protect electrical devices from static discharge.
Our PremBubble ESD Mat helps to reduce the dangers of electrostatic discharge (ESD) in your workplace through an ankle strap that will ground employees and prevent ESD.
 |
Anti-Fatigue - 3/3Â This mat offers Excellent anti-fatigue properties. This is measured by ASTM D3547 which records the compression and decompression of the mat. The higher the rating the better its anti fatigue qualities. |
 |
Slip Resistance - 2/3 This mat provides Very Good slip resistance. This is measured by ASTM C1028-89 & DIN-E-51130, 51097 which tests the force required to cause slippage of a load across the mat. The higher the rating the higher the slip resistance |
 |
Wear Resistance - 2/3 This mat offers Very Good resistance to wear. This is measured by ASTM D3844-92 which subjects the mat to 5000 cycles under an abrasive wheel. The higher the rating the longer the life span of the mat. |
 |
Fire Resistant - This mat is carries a flame retardancy certificate. Please check that this is suitable for your environment. |
Â
|
Dimensions (m.) |
Weight Kg |
Packaging Dimensions (cm.) |
Packaging Type |
Packaging Volume (m.) |
Colour |
|
0.65 x 0.95 |
3 |
17.5 x 17.5 x 75 |
Boxed |
1 |
Black |
Â
Material:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Flexible polyurethane foam.
Surface Finish:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Bubble surface for extra grip and help to prevent operator fatigue.
Product Height:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 14mm nominal.
Weight:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 3Kg (+/-3%)
Operating Temperature:                           -40 to + 80ºC
up to +120ºC (short time)
Electrical Resistance:                                 10^5 – 10^7 Ohm (DIN EN 61340-5-1)
Hardness, Shore A:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 32 + / - 5
Resistance to Chemicals:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Polyurethane offers limited resistance to chemicals and oils.
Environmental Resistance:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Ideal for all dry areas.
UV Resistance:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Yes.
Typical Applications:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Behind counters and industrial applications.
Installation Method:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Loose lay.
Cleaning Method:Â Â Â Â Â Â Â Â Â Â Brush down, vacuum clean and wipe with wet cloth
Flame Retardancy:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â DIN 4102/B2 (B1-version available on request)
Country of Origin:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Germany
Â
£125.00 to £189.00 (Excluding VAT)
