Heavy Duty Interlocking Workshop Mats
❯
Heavy Duty Interlocking Workshop Mats
FREE DELIVERY
| 20+ units gets 9% off | £71.88 Ex Vat |
| 8+ units gets 5% off | £75.04 Ex Vat |
| 3+ units gets 3% off | £76.62 Ex Vat |
Free Delivery - 2 to 3 working days
Heavy Duty Mats: Unmatched Durability & Safety
- Heavy-Duty Durability: Crafted from a robust mix of SBR and Nitrile rubber, these workshop mats withstand the rigours of industrial use while offering comfort underfoot.
- Oil and Grease Resilience: Engineered to resist deterioration from oils and greases, ensuring suitability for industrial and food production areas.

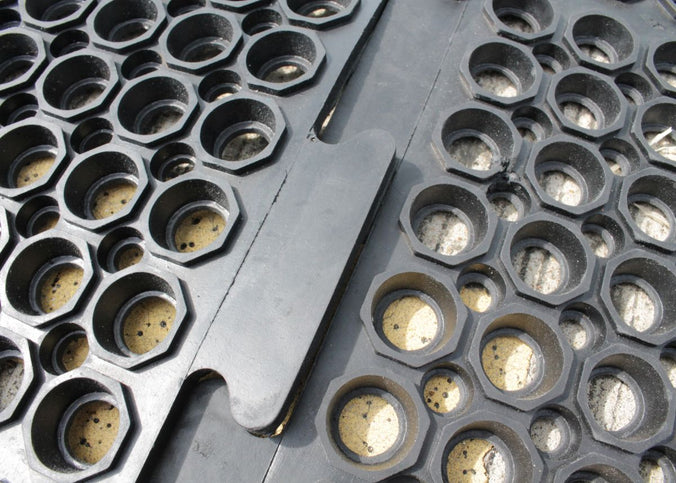

- Versatile Interlocking Design: The mats feature interlocking edges, allowing for seamless expansion to cover any desired floor space in a variety of configurations.
- Substantial Load Support: Each mat's dimensions of 90cm x 150cm x 12mm provide a sturdy and reliable surface for heavy equipment and frequent foot traffic.
- Enhanced Safety Features: Boasting excellent anti-fatigue and slip resistance, these mats contribute to a safer work environment by reducing the risk of accidents and discomfort.
- Efficient Swarf Management: A pattern of holes across the mat surface effectively scrapes and traps swarf, keeping work areas clean and reducing maintenance efforts.
- Customisable Edging Options: Available in five distinct styles with various edging combinations to accommodate different layout requirements and aesthetic preferences.
- Easy Maintenance: Simple to clean with a hose or mild detergent, these mats are designed for hassle-free upkeep in busy workshop settings.
- Dimensions: Each mat tile measures approximately 90cm x 150cm with a thickness of 12mm, providing ample coverage while maintaining a low-profile design.
Our Heavy-Duty Workshop Mats are the perfect product if you need hard-wearing, oil-resistant matting that can be extended to cover larger floor areas. Choose from either an individual 90cm x 150cm mat or the optional interlocking versions that can be joined together along the narrow or wide edges. See the images for the guide.
Whichever version you choose, you can expect to benefit from a durable rubber mat that provides very good anti-fatigue and anti-slip properties, even in busy workshops.
Key features and benefits
- Made from durable SBR and Nitrile rubber
- Oil and grease resistant
- Interlocking pieces form larger matting areas
- Mat size of 90cm x 150cm x 12mm
- Great anti-fatigue properties and insulates against cold floors

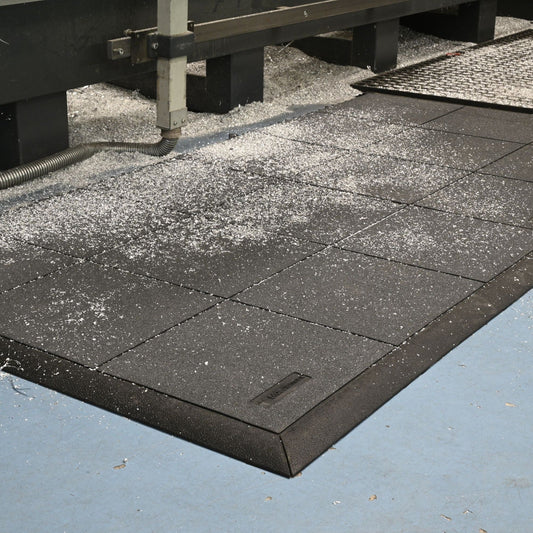

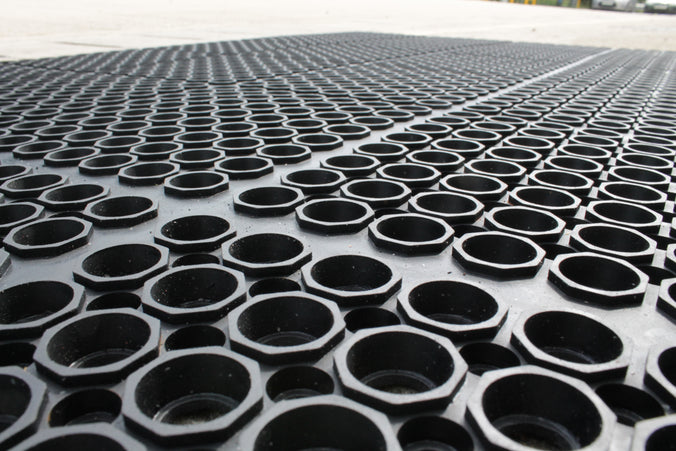

These modular workshop mats feature a pattern of holes, which help to scrape swarf away from shoes safely trapping it underneath the mat ready to be swept away at the end of the working day.

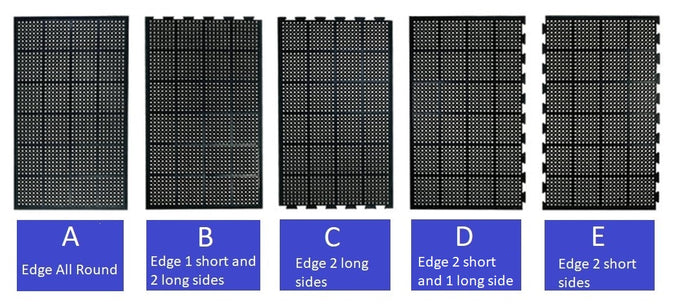

The mats are available in 5 styles allowing you to extend the mats in different directions.

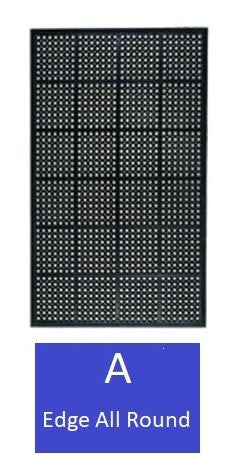

- A - Edged all round

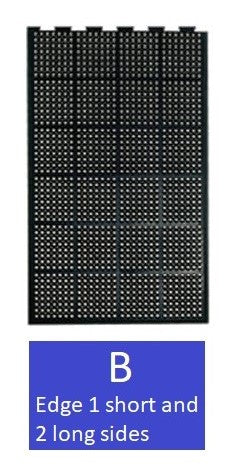

- B - Edged on 1 short and 2 long sides

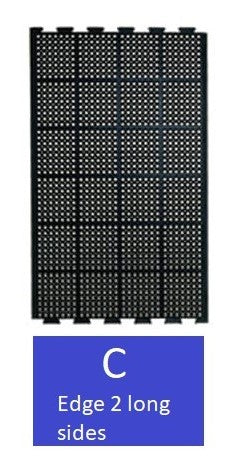

- C - Edged on 2 long sides

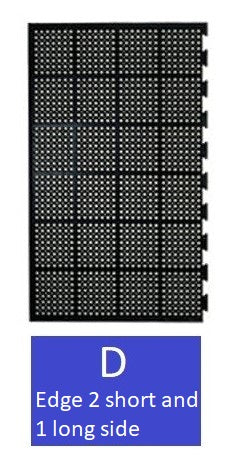

- D - Edged on 2 short and 1 long sides

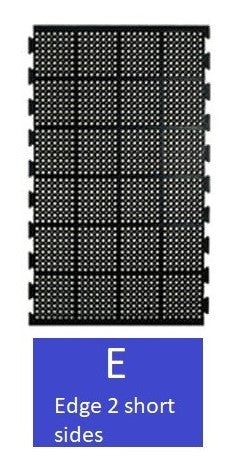

- E - Edged on 2 short sides

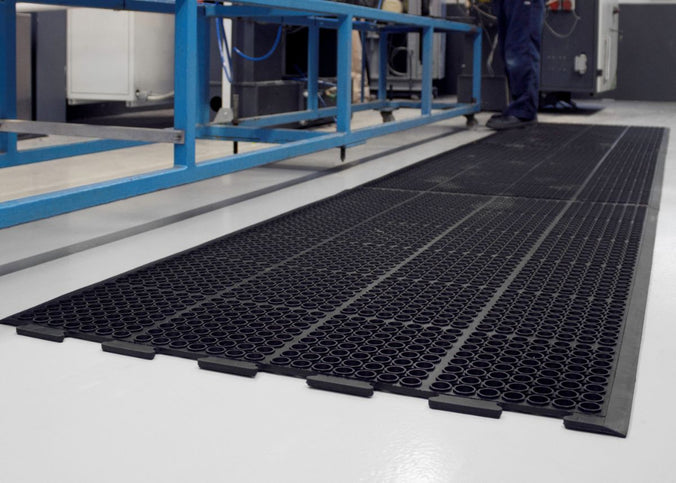

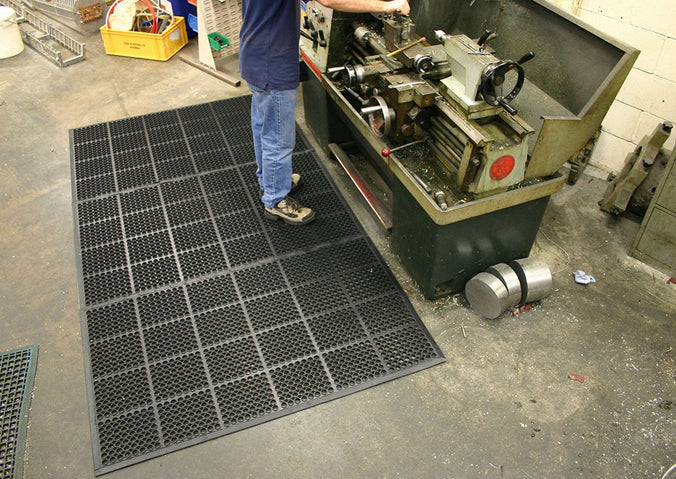

These versions can be combined in multiple ways to cover very large floor areas, such as machine workshops and production areas.
Size and Colour
Each mat tile is approximately 90cm x 150cm, depending on the style chosen, and has a thickness of 12mm. They are supplied in black colour only to help hide oil and dirt from machining processes.
Materials
The Heavy Duty Workshop Mats are made from a mix of natural SBR Rubber and Nitrile, creating a hard-wearing mat that is comfortable to stand on and resistant to oils. This makes it an ideal choice for workshop matting.
Compatibility
- Wet areas - Yes
- Trolley wheels over the surface - Yes
- Chemical resistance - Yes
Modular Workshop Mats - Performance Ratings
 |
Anti-Fatigue - 4/5 This mat offers Excellent anti-fatigue properties. This is measured by ASTM D3547 which records the compression and decompression of the mat. The higher the rating the better its anti fatigue qualities. |
 |
Slip Resistance - 4/5 This mat provides Excellent slip resistance. This is measured by ASTM C1028-89 & DIN-E-51130, 51097 which tests the force required to cause slippage of a load across the mat. The higher the rating the higher the slip resistance |
 |
Wear Resistance - 5/5 This mat offers Superb resistance to wear. This is measured by ASTM D3844-92 which subjects the mat to 5000 cycles under an abrasive wheel. The higher the rating the longer the life span of the mat. |
 |
Oil Resistant - Some mats deteriorate with oil. This mat is Oil & Grease Resistant making it suitable for all Industrial and Food production areas where this is an issue. |
 |
Wet Area Mat - This mat is suitable for Wet Environments where the spillage of water and other chemicals is an issue. |
Modular Workshop Mats - Product Specifications:
The Heavy Duty Interlocking Workshop Mats are constructed from a robust natural rubber and 25% NBR compound, ensuring durability and resilience. Each mat tile measures 90cm x 150cm with a substantial thickness of 12mm, providing excellent cushioning and support. Designed to perform in a range of temperatures from 0°C to +70°C, these mats are suitable for both wet and dry environments, offering limited chemical resistance. The slip resistance rating of DIN 51130 - R10 enhances safety in the workplace. Installation is straightforward with the loose lay interlocking system, and maintenance is easy with a simple hose down or mild detergent wash. With moderate UV resistance and a tensile strength of ASTM D412, 3 (+/-1)NM/mm², these mats are built to last, backed by a 1-year guarantee.
| Material | Natural rubber/25% NBR compound |
|---|---|
| Mat Tile Size | 90cm x 150cm |

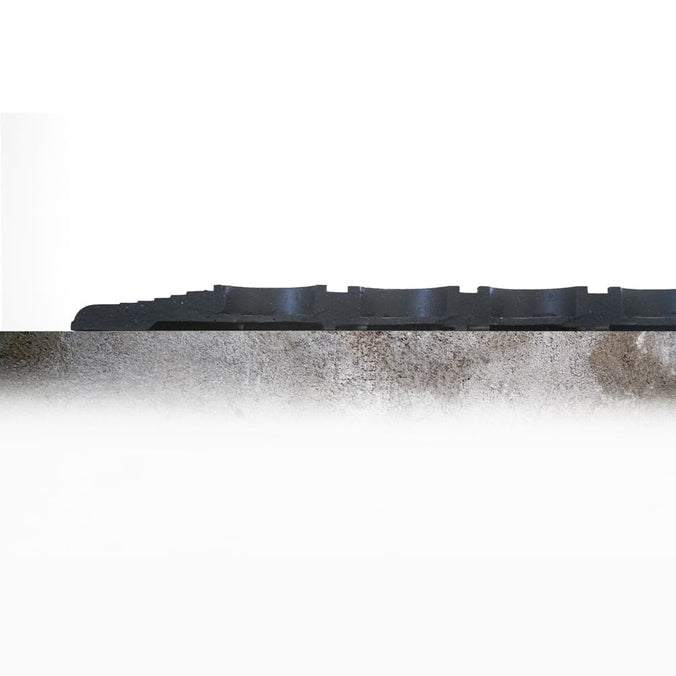

| Height / Thickness | 12mm |
| Min. Operating Temperature | 0°C |
| Max. Operating Temperature | +70°C |
| Environmental Resistance |
Wet and dry environments |
| Chemical Resistance | Limited resistance to chemicals |
| Slip Resistance | DIN 51130 - R10 |
| Installation | Loose lay interlocking mats |
| Cleaning Method | Hose with water or mild detergent |
| UV Resistance |
Moderate |
| Tensile Strength | ASTM D412, 3 (+/-1)NM/mm2 |
| Elongation | ASTM D412, 200& (+/-50%) |
| Guarantee | 1 year |
Data Sheets:
For any additional information, please contact our team for assistance.
