StatMat - Anti-Static Floor Matting

Do you need to protect your employees from ESD? Are your components currently in danger from static build up? Want to make your workplace significantly safer?

The StatMat is an ESD floor mat that works to stop the build up of static, keeping your staff and workplace safe.

  • Durable Anti-Fatigue Matting
  • Includes 10mm Male Stud
  • Thickness 9mm
  • Resistance of 1 x 109Ω to 1 x 1010Ω
  • Fire resistant to FMVSS302



Due to the thickness of this mat, the StatMat has very good anti-fatigue qualities for employee comfort and greater productivity.

Available in 3 standard sizes but also has a Cut To Size option which is 90cm wide by however long you require. Simply choose the Custom Length option in the drop down list and enter ( in cm's ) the length you need. We will then calculate a price for you to order.


First Mats - Product Scores

Anti Fatigue Anti-Fatigue - 2/3 This mat offers Very Good anti-fatigue properties. This is measured by ASTM D3547 which records the compression and decompression of the mat. The higher the rating the better its anti fatigue qualities.
Slip Resistance Slip Resistance - 1/3 This mat provides Good slip resistance. This is measured by ASTM C1028-89 & DIN-E-51130, 51097 which tests the force required to cause slippage of a load across the mat. The higher the rating the higher the slip resistance
Wear Resistance Wear Resistance - 2/3 This mat offers Very Good resistance to wear. This is measured by ASTM D3844-92 which subjects the mat to 5000 cycles under an abrasive wheel. The higher the rating the longer the life span of the mat.
High Voltage Environments High Voltage - Suitable for high voltage environments
Fire Resistant Fire Resistant - This mat is carries a flame retardancy certificate. Please check that this is suitable for your environment.






Note: Accessories shown are not included in the price

  • As the mat has a textured surface it also provides anti slip protection.

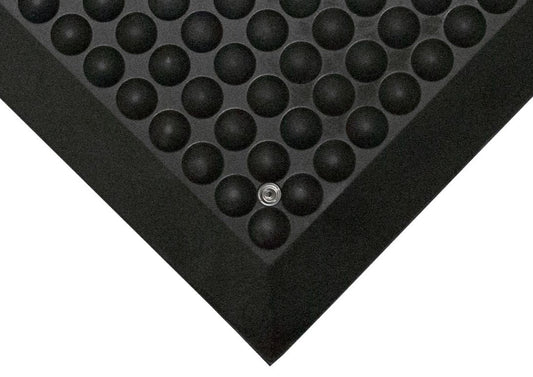

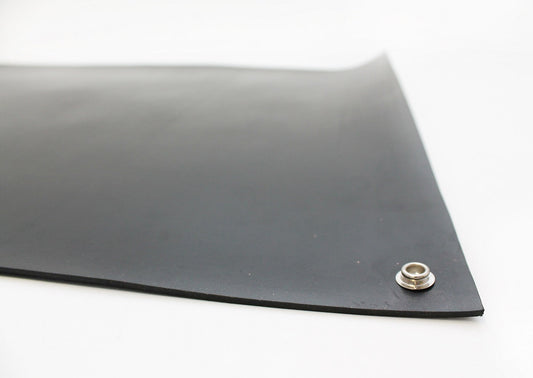

  • The mat is grounded through a 10mm male stud which is fitted to the mat.
  • The best performance of the mat is acquired through using a grounding wire.
  • Made from PVC foam (homogenous)
  • Suitable for dry indoor environments
  • Easily cleaned through brushing or mopping the top surface.
  • 9mm Height
  • Not to be used in High Voltage Areas that exceed 240 volts
  • Bevelled on all sides for a safer finish ( non trip )
  • The StatMat is fire retardent, conforming to FMVSS302

Data Sheet:



Material: Virgin Closed Cell PVC Foam (Homogenous)

Surface Finish: Pebble
Product Height: 9mm nominal
Operating Temperature: 0o - + 60oC
Resistance to Chemicals: PVC is resistant to many different chemicals, alkalis and general industrial chemicals. Resist
alcohol’s, aliphatic hydrocarbons, oils , weak acids, strong mineral acids and alkalis. Resists oil
and grease if properly cleaned. Does not resist organic solvents, ketones, esters and aromatic
hydrocarbons. Please contact the sales office for more specific details.
Resistivity: 109 - 1010 Ohms per square metre.
Environmental Resistance: Suitable for dry indoor environments.
UV Resistance: N/A
Typical Applications: Around machinery where static build up is common.
Not to be used in High Voltage Areas exceeding 240 Volts
or to be confused with Electrical Switchboard matting.
Installation Method: Loose lay
Cleaning Method: Brush or mop the top surface
