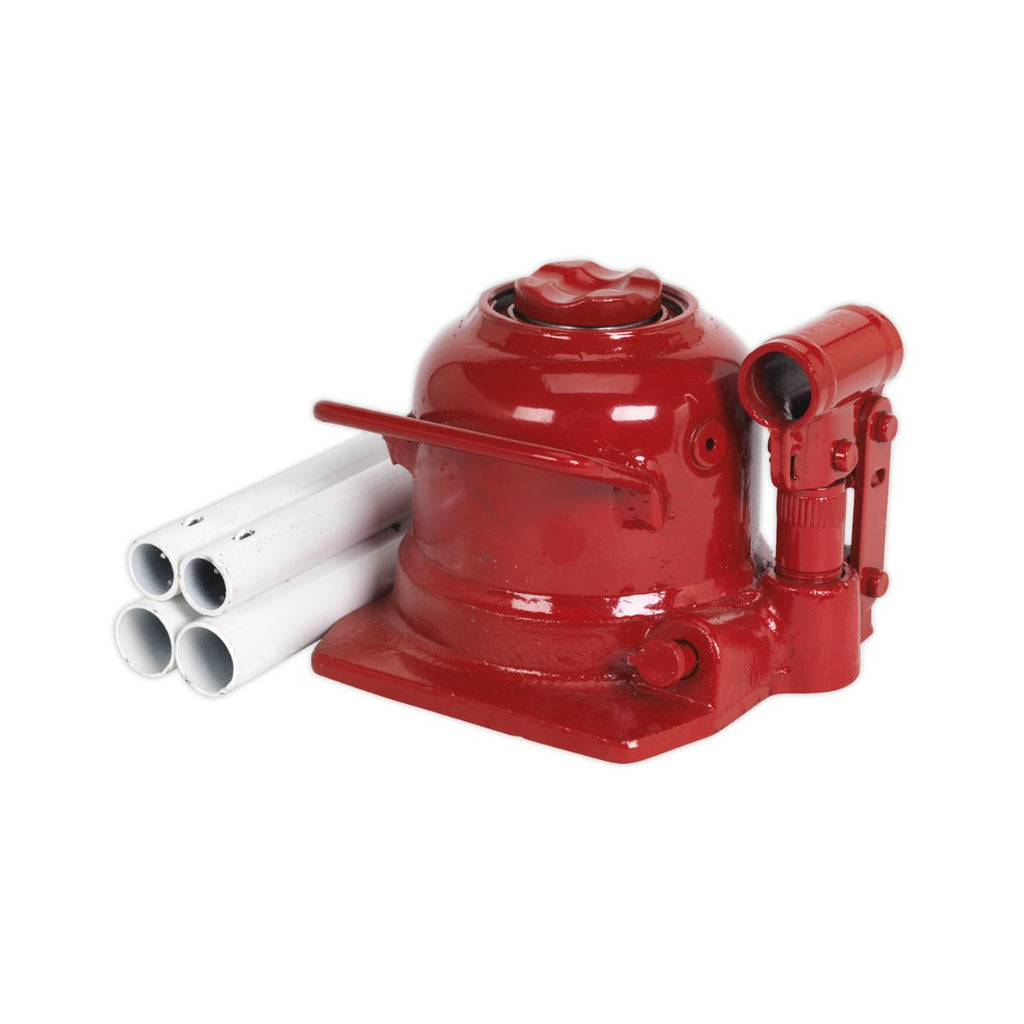

10 Tonne Low Profile Bottle Jack

Low Profile Telescopic Bottle Jack with a 10-tonne lifting capacity. High-quality jack for professional use. Ideal for machinery and vehicles with low ground clearance. Machine welded base and reservoir for unbeatable strength and fitted with an overload valve for safe operation.

  • 10-tonne lifting capacity
  • Low profile bottle jack - 128mm minimum height
  • High-quality design for professional use
  • Strong construction with machine welded base and reservoir
  • Fitted with overload valve
  • Supplied with 4pc handle
  • 1-year guarantee included

This 10 tonne low profile bottle jack is supplied with a 4pc handle, which makes it easy to store and operate. The threaded pump assembly means it is easily disassembled and provides easy maintenance. This robust and durable low profile bottle jack also comes complete with a 1-year guarantee.

10 Tonne Low Profile Bottle Jack Specifications

  • Lifting Capacity: 10 tonnes
  • Hydraulic lift: 95mm
  • Maximum height: 223mm
  • Minimum height: 128mm

Low Profile Bottle Jack Instruction Manual

Instruction Manual

Before using the low profile bottle jack, we recommend purging the hydraulic circuit to eliminate any air from the system that may have accumulated during transit. See the PDF manual for instructions.

When using a low profile bottle jack, it is important to make sure that the base is level and that the load is evenly distributed. This will help to prevent the jack from tipping over and prevent accidents. Full safety guidance and instructions can also be found in the downloadable PDF manual.

Data Sheet:

10 Tonne Low Profile Bottle Jack

Low Profile Telescopic Bottle Jack with a 10-tonne lifting capacity. High-quality jack for professional use. Ideal for machinery and vehicles with low ground clearance. Machine welded base and reservoir for unbeatable strength and fitted with an overload valve for safe operation.

  • 10-tonne lifting capacity
  • Low profile bottle jack - 128mm minimum height
  • High-quality design for professional use
  • Strong construction with machine welded base and reservoir
  • Fitted with overload valve
  • Supplied with 4pc handle
  • 1-year guarantee included

This 10 tonne low profile bottle jack is supplied with a 4pc handle, which makes it easy to store and operate. The threaded pump assembly means it is easily disassembled and provides easy maintenance. This robust and durable low profile bottle jack also comes complete with a 1-year guarantee.

10 Tonne Low Profile Bottle Jack Specifications

  • Lifting Capacity: 10 tonnes
  • Hydraulic lift: 95mm
  • Maximum height: 223mm
  • Minimum height: 128mm

Low Profile Bottle Jack Instruction Manual

Instruction Manual

Before using the low profile bottle jack, we recommend purging the hydraulic circuit to eliminate any air from the system that may have accumulated during transit. See the PDF manual for instructions.

When using a low profile bottle jack, it is important to make sure that the base is level and that the load is evenly distributed. This will help to prevent the jack from tipping over and prevent accidents. Full safety guidance and instructions can also be found in the downloadable PDF manual.
