Data Sheet:

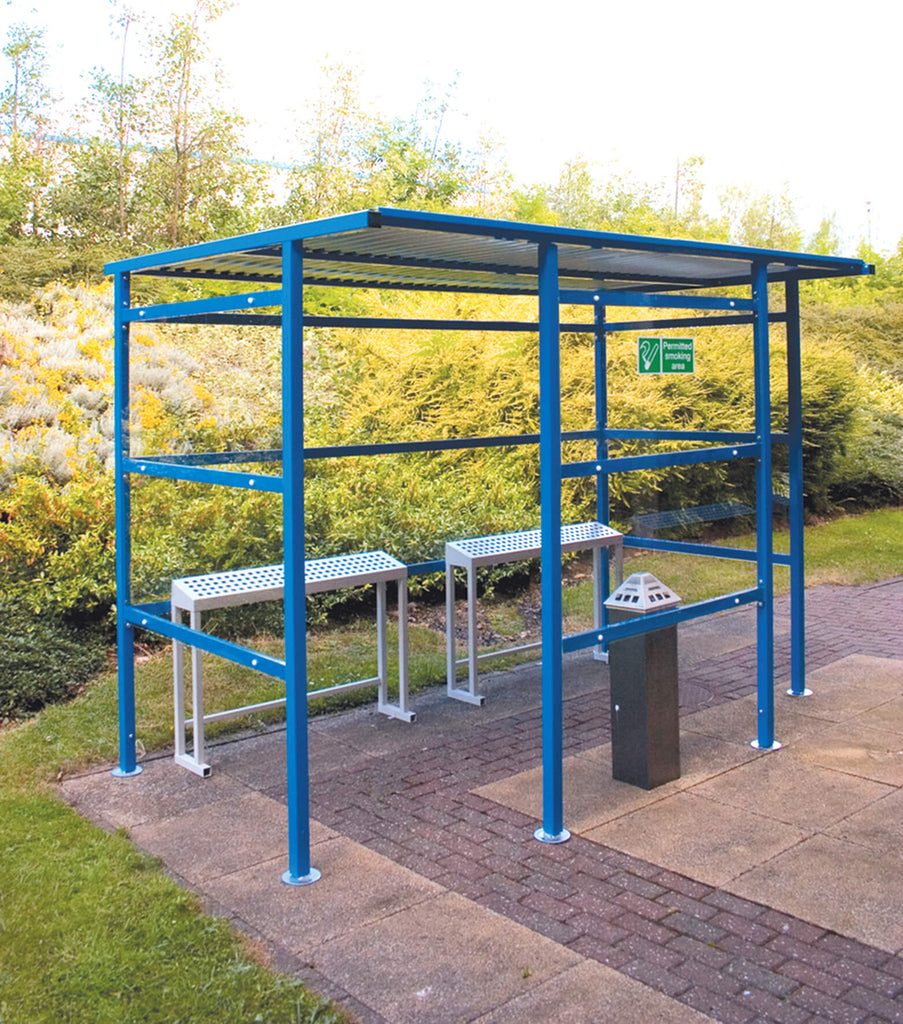

Outdoor Smoking Shelters with Perspex Back Panel

If you are looking to set up a designated smoking area away from your main entrances and exits, this Outdoor Smoking Shelter with Perspex Back Panel is ideal.

Available in different sizes to accommodate between 7 and 12 people, this robust all-weather steel and perspex structure meets government legislation for shelters, as at least 50% of the shelter is open to allow cigarette fumes to disperse quickly.

The shelter also provides enough space under cover for tables / benches and chairs.

The roof, clear perspex back panel and 6mm clear perspex side panels offer full visibility, while protecting smokers from the wind and rain.

• Available in four sizes (for 7 people, 9 people x 2 options, or 12 people) in a choice of blue, green or grey powder coating with Germ Guard Active Technology anti-bacterial paint
• Easy to install on a concrete surface
• Comes with adjustable feet to aid positioning on site
• Dimensions: 2,270mm (h) x 3,000mm (w) x 1,900mm (d)
• Designed and manufactured in the UK

The Smoking Canopy can also be used as a dedicated Vaping Canopy, giving ex-smokers and others a separate protected shelter away from smokers.

To install, bolt the shelter to 250mm thick concrete for stability (Parabolts for surface mounting included).

Delivery is free in mainland UK, within 5 working days.

Specifications

7 person capacity

2,100mm (h) x 2,450m (w) x 1,900mm (d)

9 person capacity

2,100mm (h) x 2,450mm (w) x 2,500mm (d)

9 person capacity

2,100mm (h) x 3,060mm (w) x 1,900mm (d)

12 person capacity

2,100mm (h) x 3,060mm (w) x 2,500mm
