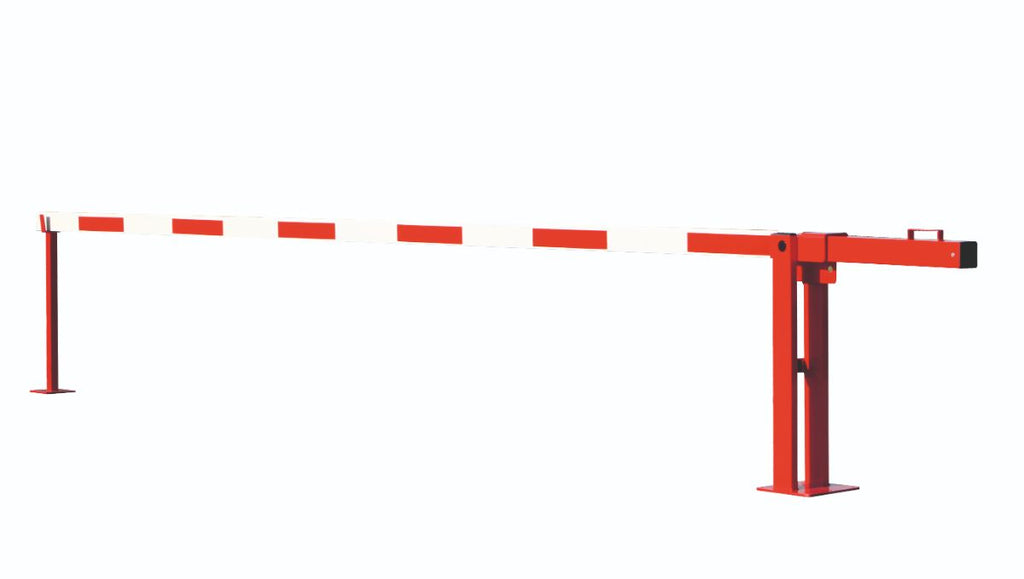

The Counterweight Car Park Access Barrier with Fixed Support Post is ideal for restricting access to buildings, car parks or other restricted sites. It provides excellent security along with a streamlined and functional design, allowing access to a site to be controlled effectively.

  • Counterweight incorporated into barrier arm
  • Easy locking features
  • Barrier arm is white with red reflective stripes for clear visibility
  • Materials: steel (pivot post) and aluminium (barrier arm)
  • Steelwork is galvanised and powder coated
  • Strong construction

The barrier arm incorporates a counterweight and features an automatic cylinder lock, making this product easy and effective to use. The reflective stripes ensure excellent visibility both day and night providing a safe and secure environment. Surface or sub-surface fixing options are available.

This product is also available with a rising support arm.

Dimensions

  • Pivot post: W x D x H: 220 x 100 x 1,000mm
  • Base plate: W x D x H: 295 x 295 x 10mm
  • Barrier arm: 90 x 60mm; maximum length: 7,000mm

Overall length (mm)

Clear width (mm)

Weight (kg)

4000

2895

110.0

4500

3395

125.0

5000

3895

135.0

5500

4395

145.0

6000

4895

155.0

6500

5395

165.0

7000

5895

175.0



Options

  • Sub-surface fix
  • Non-automatic locking
  • Customer supplied profile locks
  • Triangular key

Data Sheet:

The Counterweight Car Park Access Barrier with Fixed Support Post is ideal for restricting access to buildings, car parks or other restricted sites. It provides excellent security along with a streamlined and functional design, allowing access to a site to be controlled effectively.

  • Counterweight incorporated into barrier arm
  • Easy locking features
  • Barrier arm is white with red reflective stripes for clear visibility
  • Materials: steel (pivot post) and aluminium (barrier arm)
  • Steelwork is galvanised and powder coated
  • Strong construction

The barrier arm incorporates a counterweight and features an automatic cylinder lock, making this product easy and effective to use. The reflective stripes ensure excellent visibility both day and night providing a safe and secure environment. Surface or sub-surface fixing options are available.

This product is also available with a rising support arm.

Dimensions

  • Pivot post: W x D x H: 220 x 100 x 1,000mm
  • Base plate: W x D x H: 295 x 295 x 10mm
  • Barrier arm: 90 x 60mm; maximum length: 7,000mm

Overall length (mm)

Clear width (mm)

Weight (kg)

4000

2895

110.0

4500

3395

125.0

5000

3895

135.0

5500

4395

145.0

6000

4895

155.0

6500

5395

165.0

7000

5895

175.0



Options

  • Sub-surface fix
  • Non-automatic locking
  • Customer supplied profile locks
  • Triangular key
